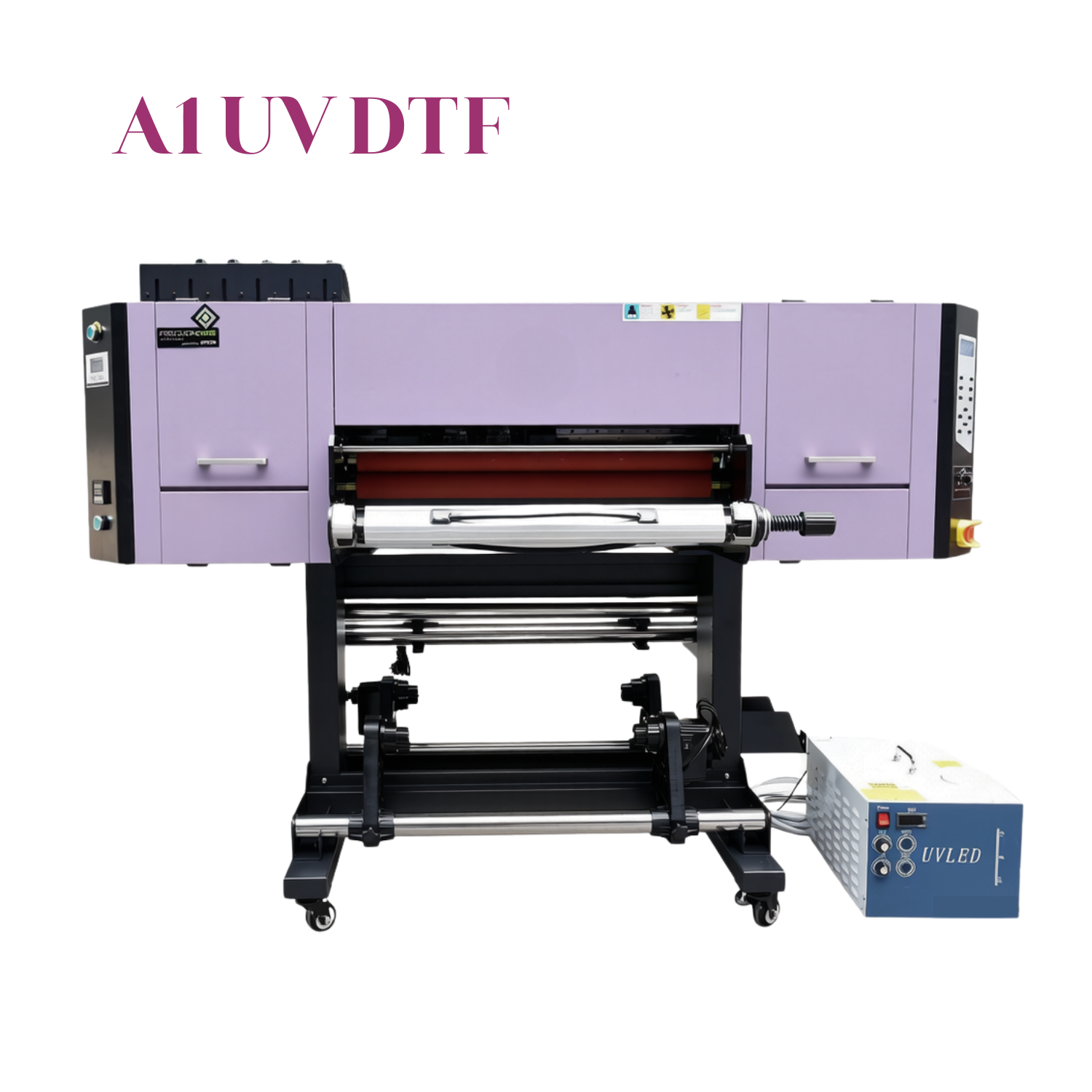

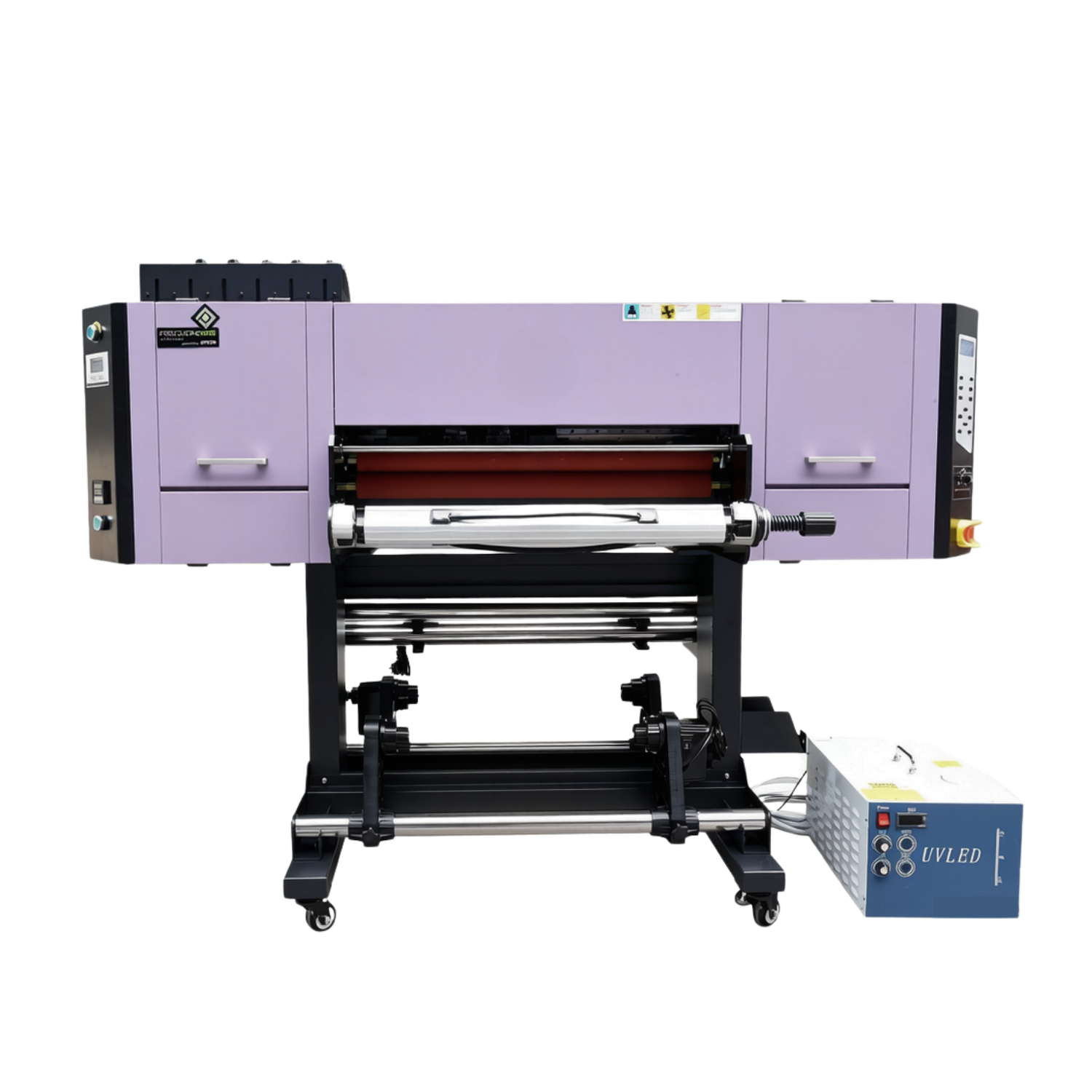

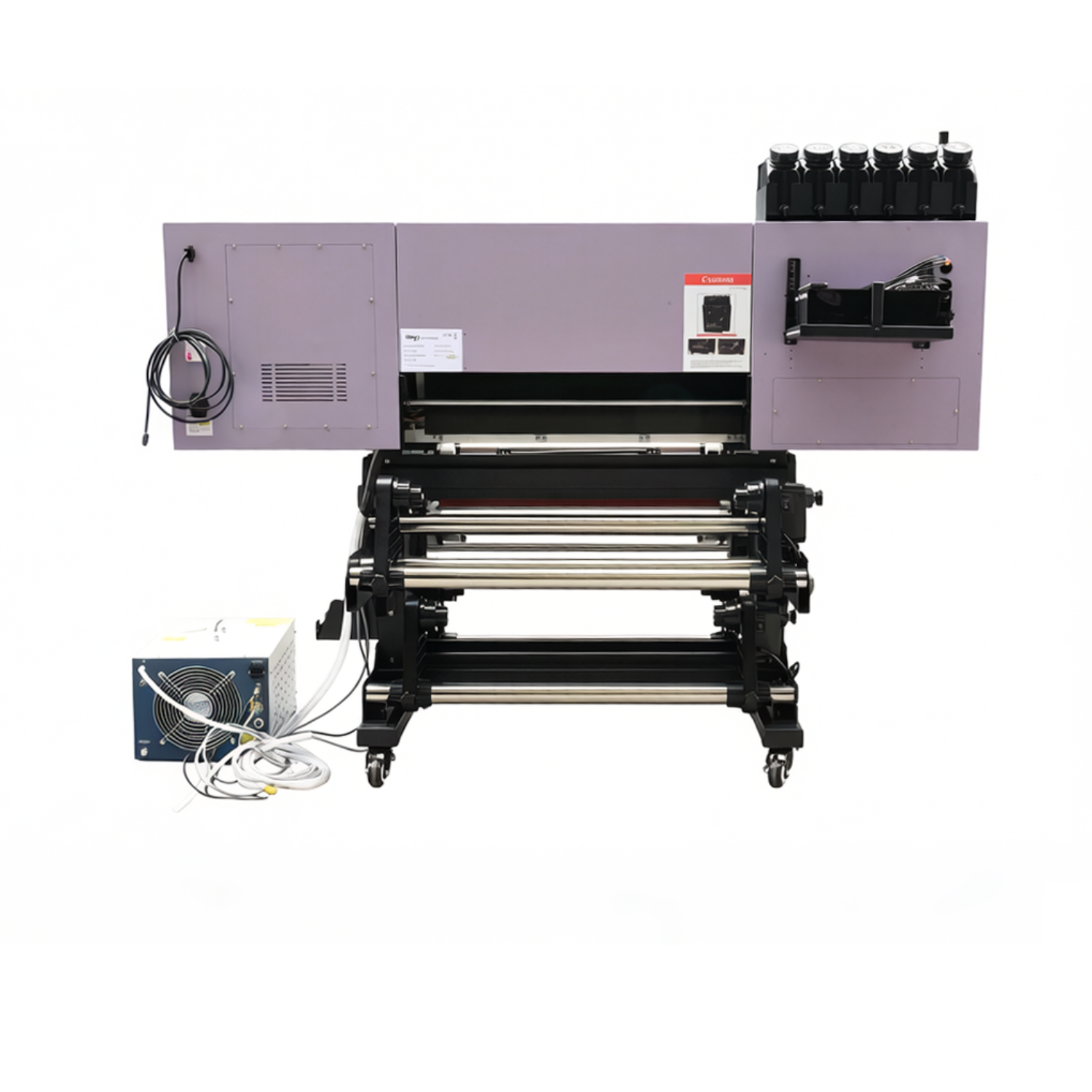

UV DTF A1(60CM-70CM) PRINTER

No.A1 UV DTF WITHOUT FOIL
  • Crystal labels are mainly used in: graphic advertising, packaging and printing, signage identification, personalized customized products, and can be used on the surface of special-shaped irregular products, such as cylinders, helmets, wine bottles, handicrafts, gift box packaging, etc.
  • It can be used immediately and dried, and can be pasted on site, reducing the cost of transportation and labor time.
  • Compared with artificial, environmental protection and personalization, the crystal mark still has obvious advantages.
  • UV DTF A1(60CM-70CM) PRINTER
  • UV DTF A1(60CM-70CM) PRINTER
  • UV DTF A1(60CM-70CM) PRINTER

SPECIFICATION

  • Print Head Type: I3200-U1
  • Print Head Number: 1-4 pcs
  • Print Width: 600mm
  • Print Head Maintenance: Anti-clogging flash spray & auto moisture retention
  • Printing Speed: Draft mode--13㎡/h, Production mode--8.2㎡/h, Quality mode 6.4㎡/h
  • Ink Type: Crystal label specialty ink
  • Ink Color: Glue + White + CMYK + Varnish
  • Cartridge Capacity: 1500ml / color
  • Curing System: Water chiller + UV LED lamp
  • Material Thickness: 1-3mm
  • Print Media: Crystal label special materials, etc.
  • Max Roll Weight: ≤40kg
  • Rewinding System: Front finished film rewinder+rear protective film rewinder
  • Unwinding System: Standard
  • Laminating Roller: High temperature, support hot stamping, rubber roller
  • Laminater Pneumatic Lift: Double-sided cylinder
  • Laminator Moving Rod: Control laminating paper walking balance
  • Operating Language: Chinese/English
  • Operating System: Win 11/win 10
  • Print Interface: USB/Net interface
  • RIP Software: Maintop
  • Power Supply Parameters: AC-220V, 50Hz 10A
  • Power: 1500W
  • Noise: Min<32dB, Max <=75dB
  • Operating Environment: Temperature range--18-25 °C; Humidity range: 35%~65%Rh
  • Machine Dimension: 1665mm x 750mm x 1270mm (LxWxH)
  • Weight: 150kg
