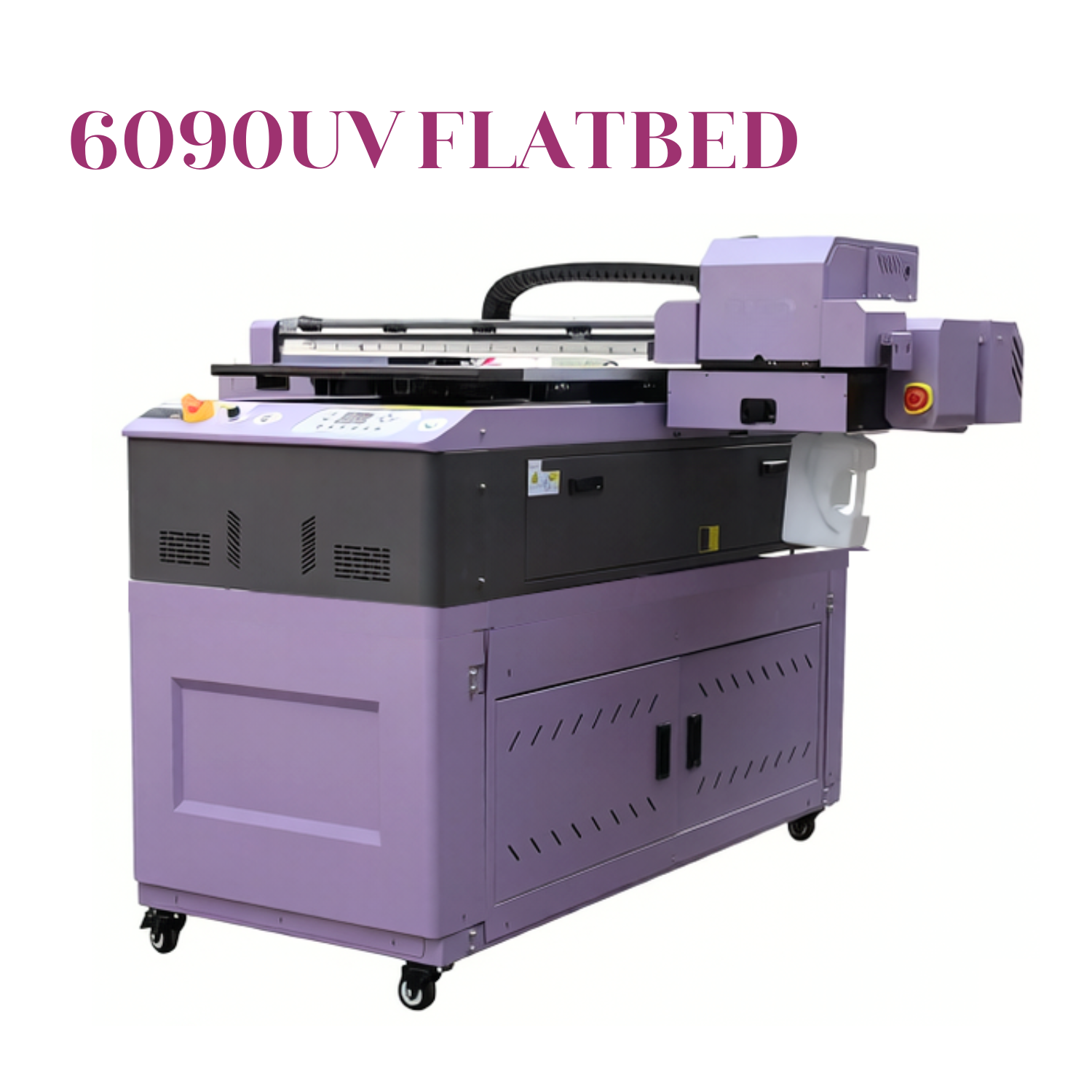

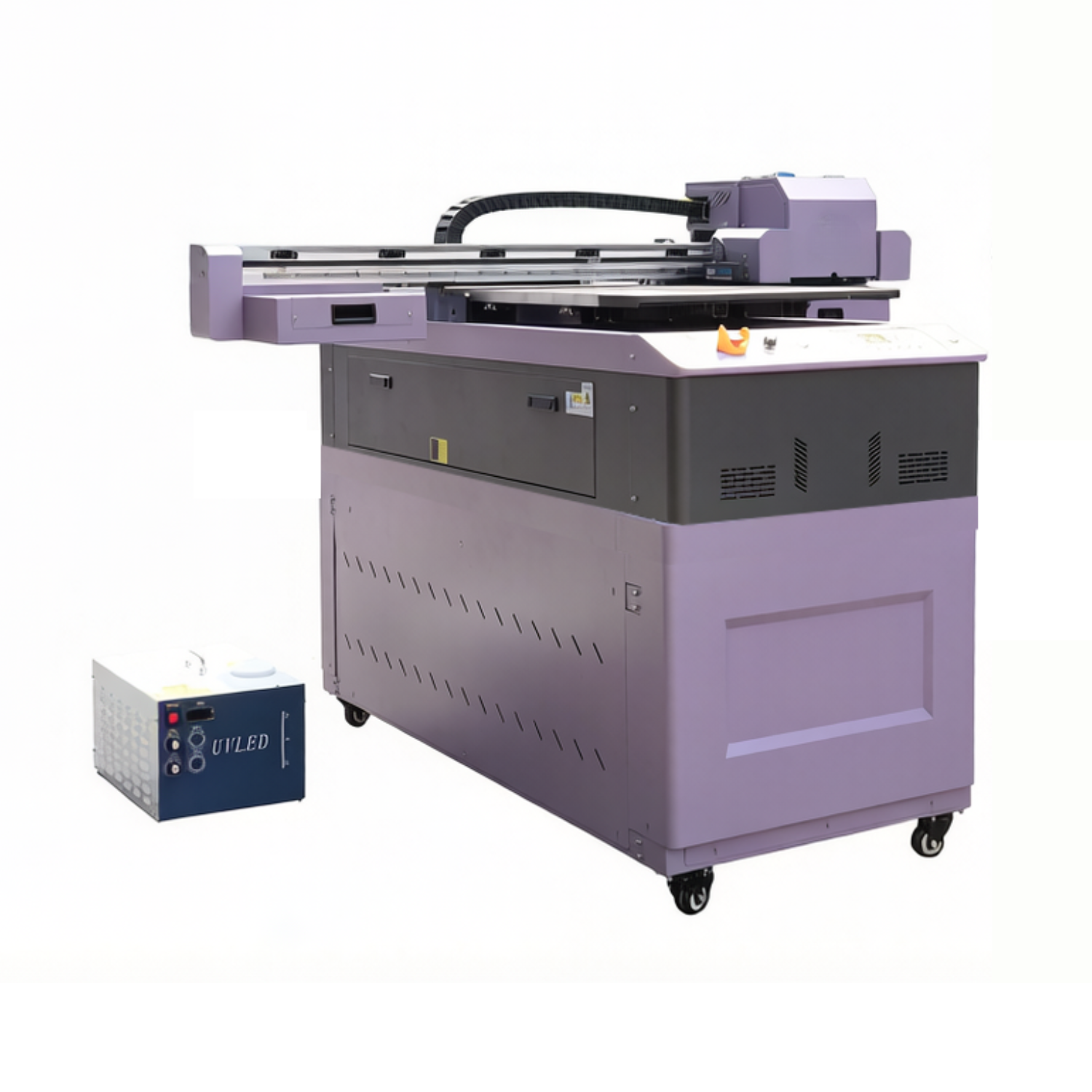

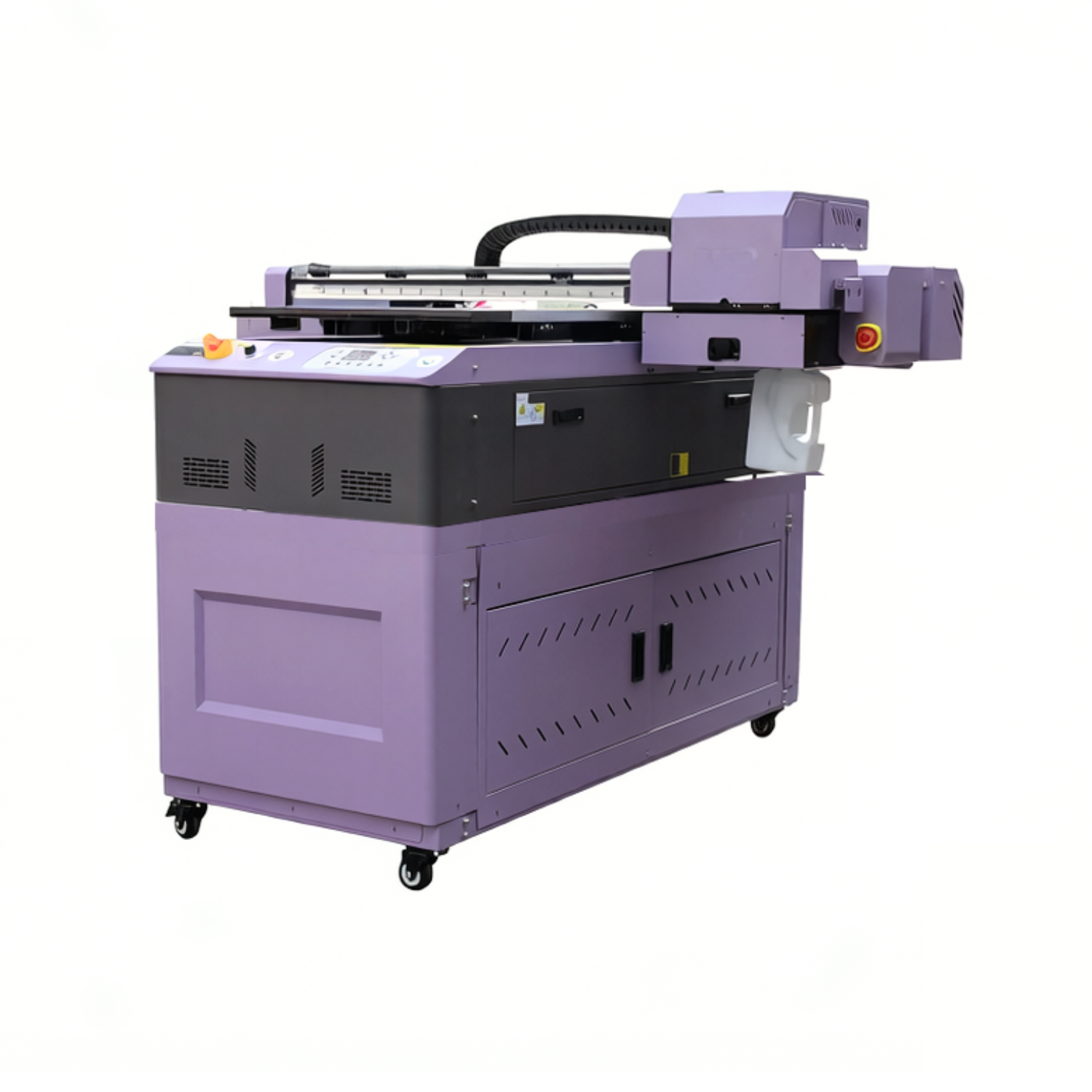

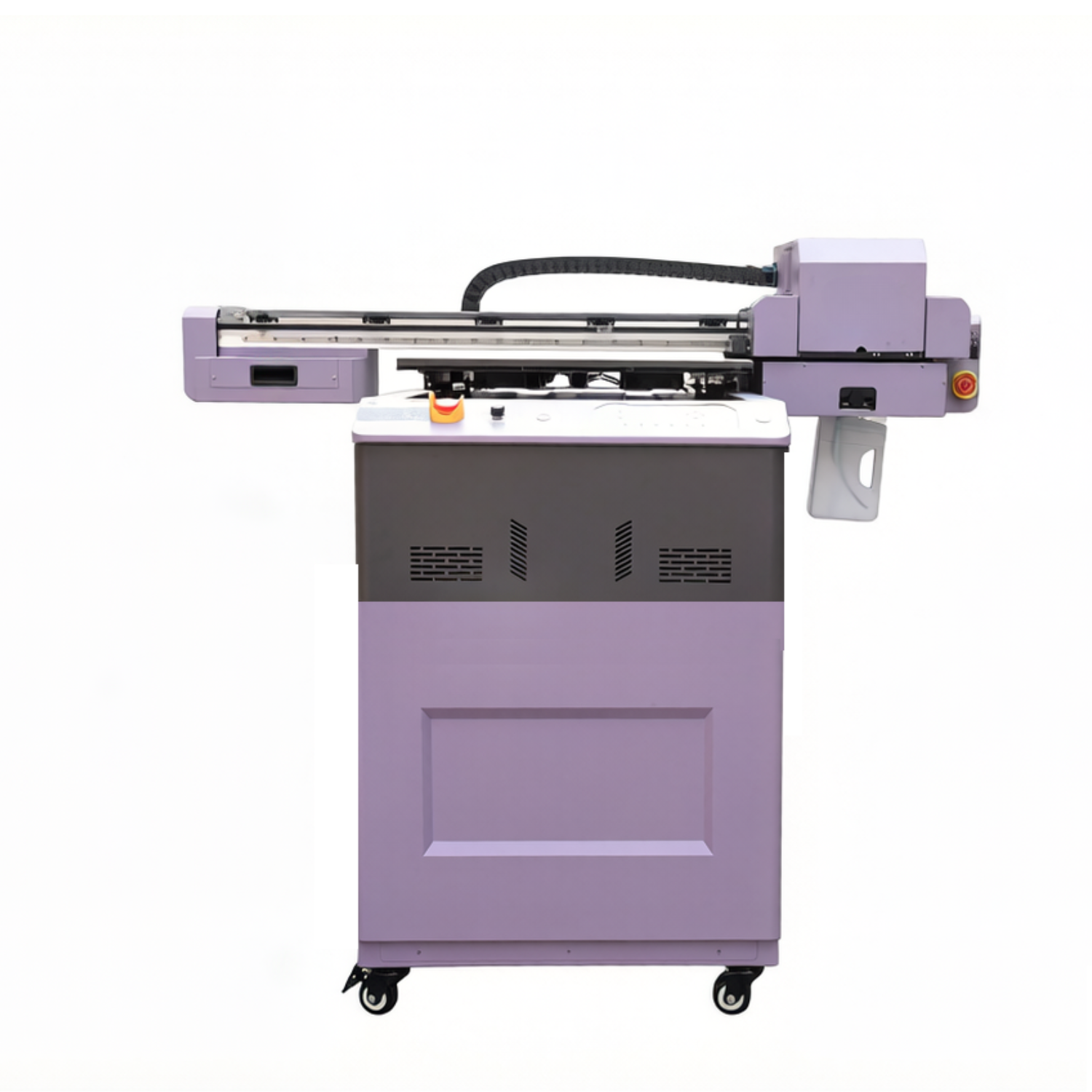

6090 FLATBED PRINTER

Name: 6090 FLATBED PRINTER
Brand: 123 DIGITAL TECHNOLOGY
SKU: 6090UV FLATBED
Availability: InStock
Rating: 5 (1 reviews)

No.6090UV FLATBED

UV 6090 Flatbed Printer suppots Multiple Imaging Methods:

Multi-layer imaging function (color+white+varnish, white+color, color+white, full color) to meet different needs of customers.
The multi-layer imaging function can quickly reproduce relief and 3D image effects on substrate materials, making the sense of concavity and convexity within reach.

SPECIFICATION

Print Head Type: F1080/I3200
Print Head Number: 1-3 pcs
Print Mode: Draft mode--11㎡/h, Production mode--5.5㎡/h, Quality mode--3㎡/h
UV Lamp Configuration: Water-cooled three-light
Ink Type: UV ink
Ink Curing Method: LED curing
Ink Color: CMYK+W(white)+V(varnish)+FV(foil varnish)
Ink Cartridge Capacity: 1500ml/color
Ink Supply Method: Positive pressure continuous ink supply
Print Width: 600x900mm
Media Type: Crystal film, glass, aluminum plastic board, acrylic board, tile, cell phone case, paper shell, wine bottle, composite wood board, rubber, PVC, logo signage, etc.
Media Thickness: 0-150 mm
Sensor Device: Solenoid automatic height sensing
Fixture Configuration: Cylinder / pen fixture (optional)
Printing Platform: Adsorption media fixation platform
Operating System: Win10 / Win7
Operation Software: 6.0 UV Maintop / PhotoPrint
Print Interface: Gigabit Ethernet or USB Port
Power Supply: AC 110V±10%, 220V±10%, 50/60±1HZ
Power: 1200W
Image File Format: JPG/TIFF/PNG
Environmental Requirements: Temperature range--18-25°C; Humidity range--35-65%Rh
Machine Size: 1653mmx1696mmx852mm (LxWxH)
Machine N.W: 250kg
Computer Configuration Requirements:
- Win7/10 64-bit system (pure version)
- Win10 system must "disable digital signature"
- CPU: 15 6500 or above
- Memory: 16G or above
- C disk: 250G or more (solid state drive recommended)
- Monitor: 17-inch flat screen monitor, true color display card, support for resolutions above 1024X768
