4H UV DIGITAL PRINTER 1.8M WIDTH

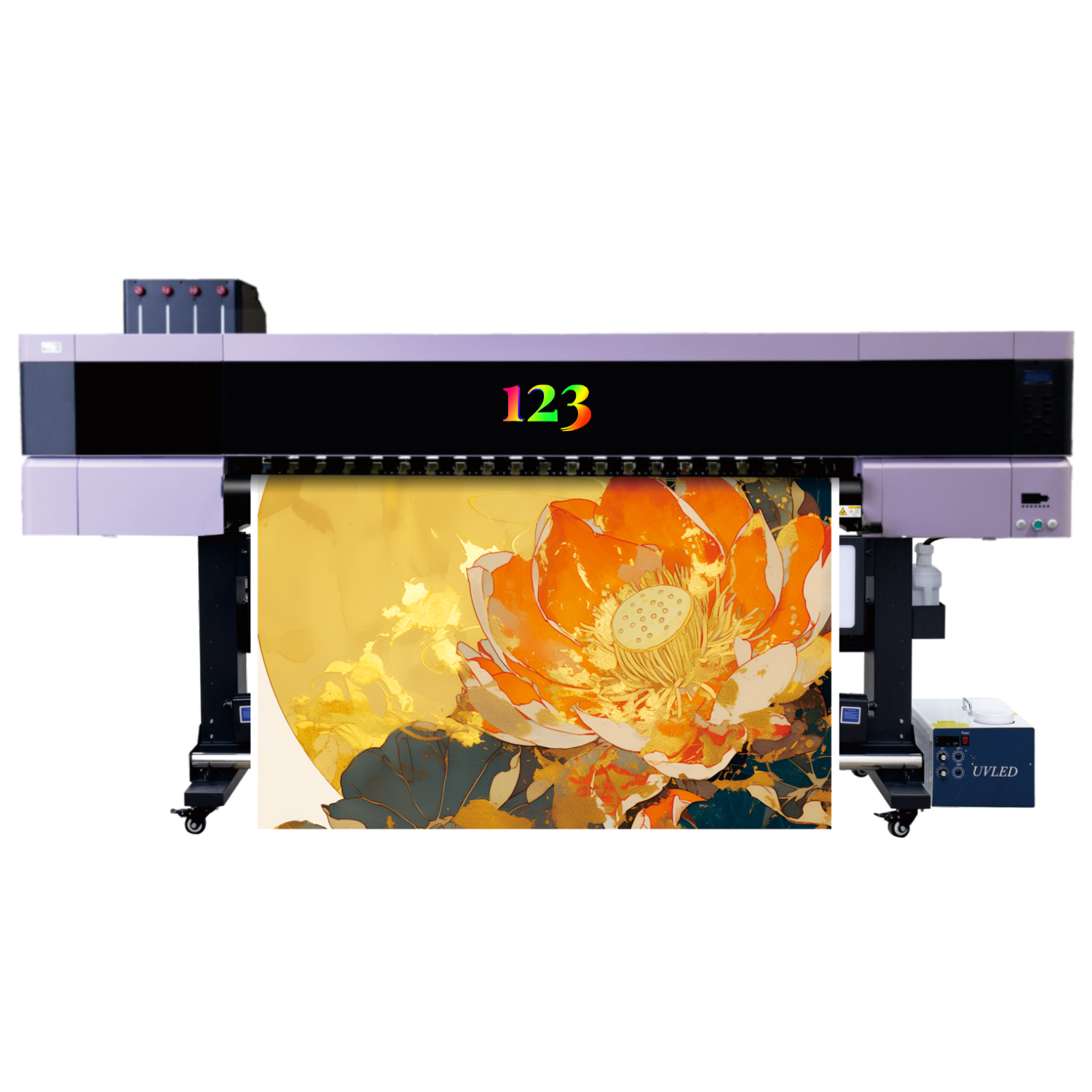

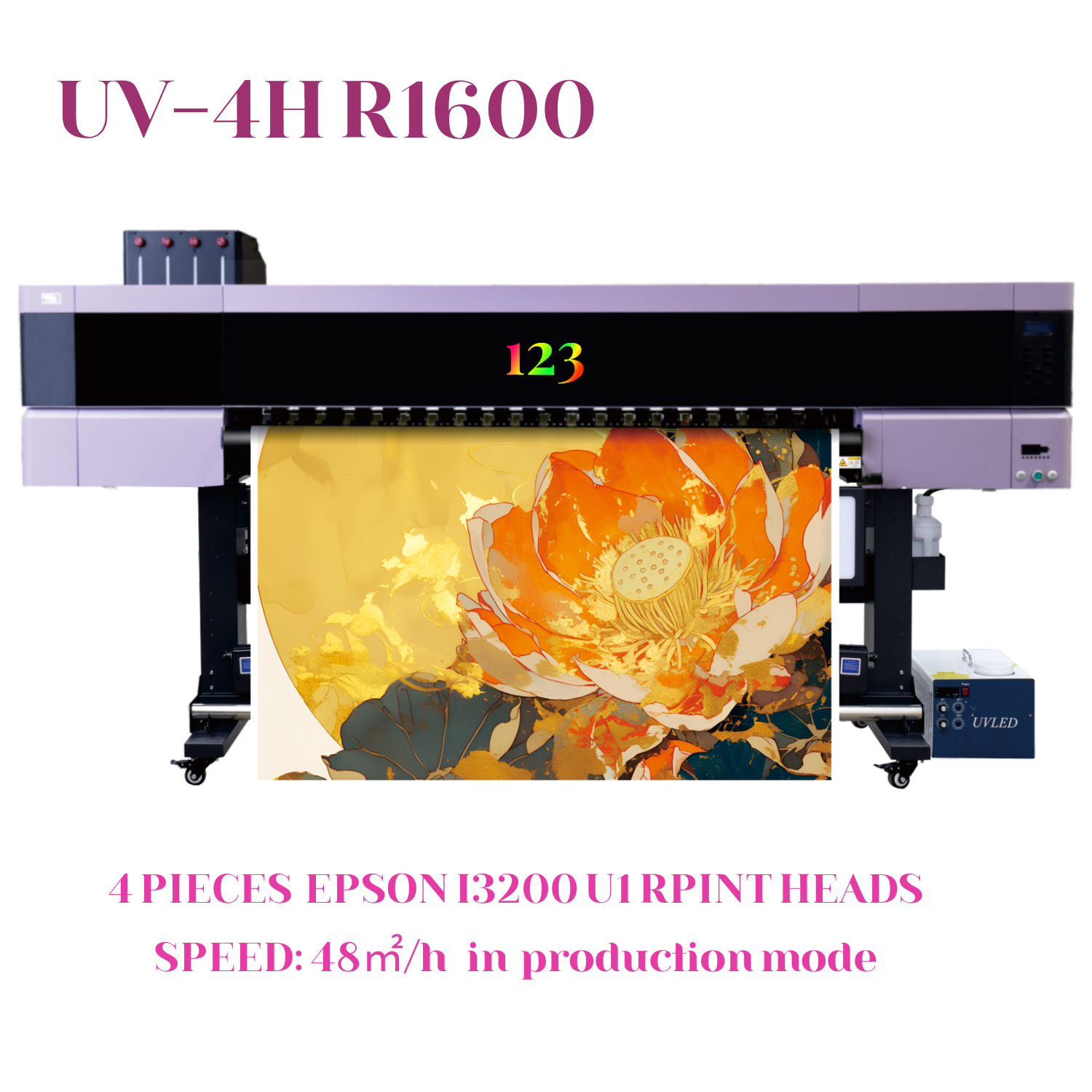

No.UV-4H R1600 Series Large-width high-speed printer
Intelligent printing and High-quality mechanical design:
  • UV light intensity adjustable: Easily cope with a variety of different materials.
  • Smart media detection: Automatically detects whether the printing media is used up, intelligent and worry-free.
  • White ink stirrer: Prevention of white ink precipitation, more smooth printing process.
  • Static eliminator: Effectively avoiding the interference of static electricity on the print head and improving printing accuracy.
  • Three-position adjustable paper pressing wheels: Independently, resulting in smoother paper feeding.
  • Ink level alarm: The waste ink bottle is equipped with a liquid level alarm to facilitate the timely cleaning of waste ink.
  • 4H UV DIGITAL PRINTER   1.8M WIDTH
  • 4H UV DIGITAL PRINTER   1.8M WIDTH

SPECIFICATION

Product Parameters
  • Printing head: Epson I3200-U1, 4 pcs
  • Printhead height: 2mm-3mm
  • Cleaning: Fully automatic claning
  • Ink style: UV ink
  • Ink color:  6 colors(C/M/Y/K+W+V)
  • Ink capacity:  3000ml / color (Ink cartridge)
  • Ink supply: Positive pressure continuous ink supply
  • Print width: 1600mm
  • Loadable coil weight: 80kg (Max)
  • Type of media: Materials such as glass film, Pvc film, 3P cloth, wallpaper, leather, bamboo blinds, etc.
  • Paper take up device: Standard
  • Heating system: Front, middle and back three-stage embedded synchronous heating control system
  • Curing system: Water-cooling system + LED UV lamp
  • Operating language: Chinese / English
  • Operating system: Win10 / Win7
  • Work Environment: Temperature range: 18-25°C, humidity range: 35-65%Rh
  • Print interface: Ethernet
  • Rip software: Maintop / Photoprint / Wasatch
  • Power parameters: AC-220V, 50Hz / 60Hz
  • Power (W):  Min: 64W, Max: 5500W
  • Noises: Min<32dB, Max<=65dB
  • Machine size: 2747mm x 730mm x 1390mm (L x W x H)
  • Packing size: 3400mm x 1140mm x 800mm (L x W x H)
  • Net weight: 310kg
  • Gross weight: 412kg
