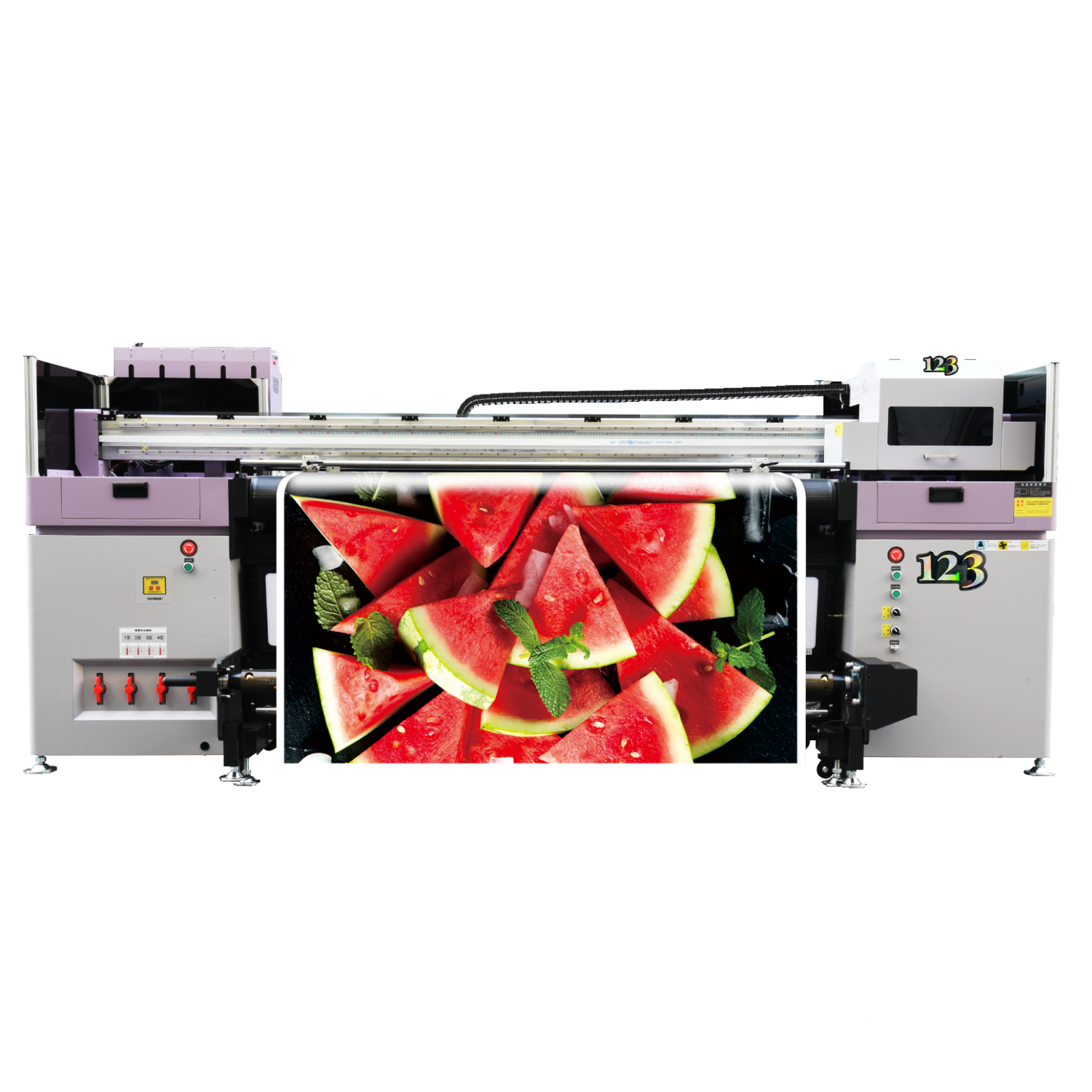

HYBRID MESH BELT PRINTER IN LILAC

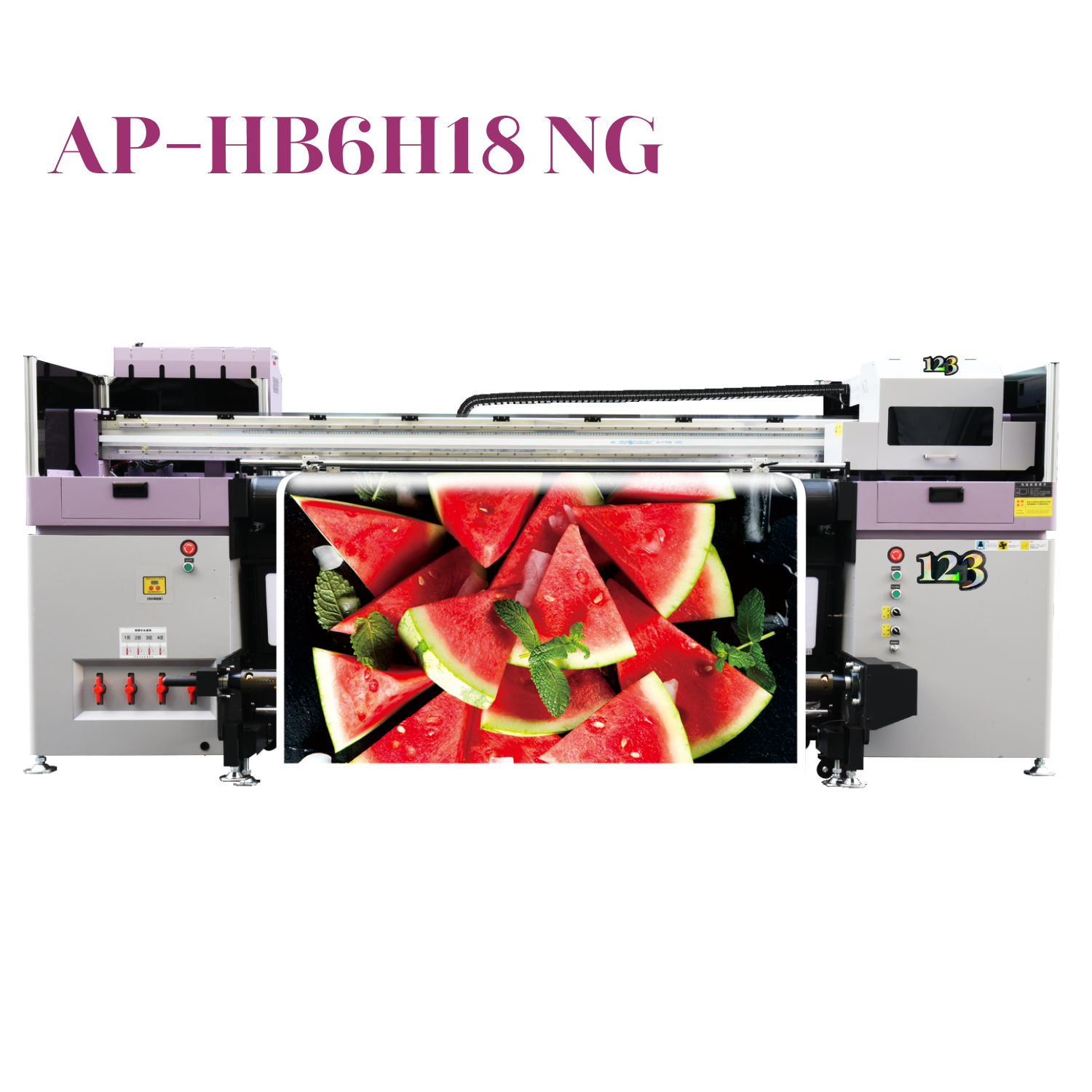

No.AP-HB6H18 NG
Epson I3200-UV/E1 print heads
  • Adopt mesh belt suction air printing platform: Smooth transmission + super adsorption, printing more flat, better results.

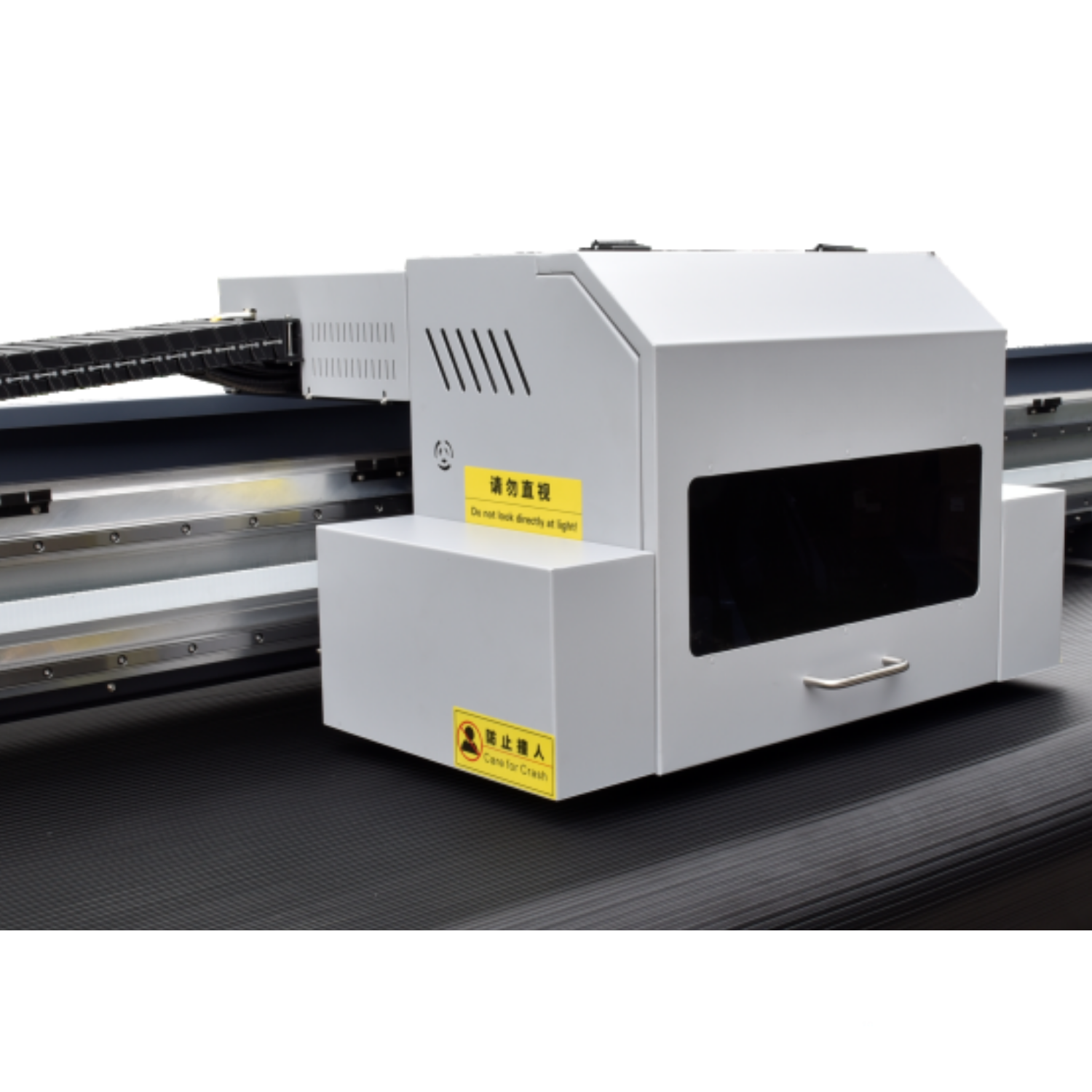

  • Anti-collision device configured on both sides of the printhead: Avoid collision between the printhead and obstacles to protece the printhead.
  • Static eliminator (UV special): Effectively eliminate static electricity to protect the printhead and improve printing accuracy.

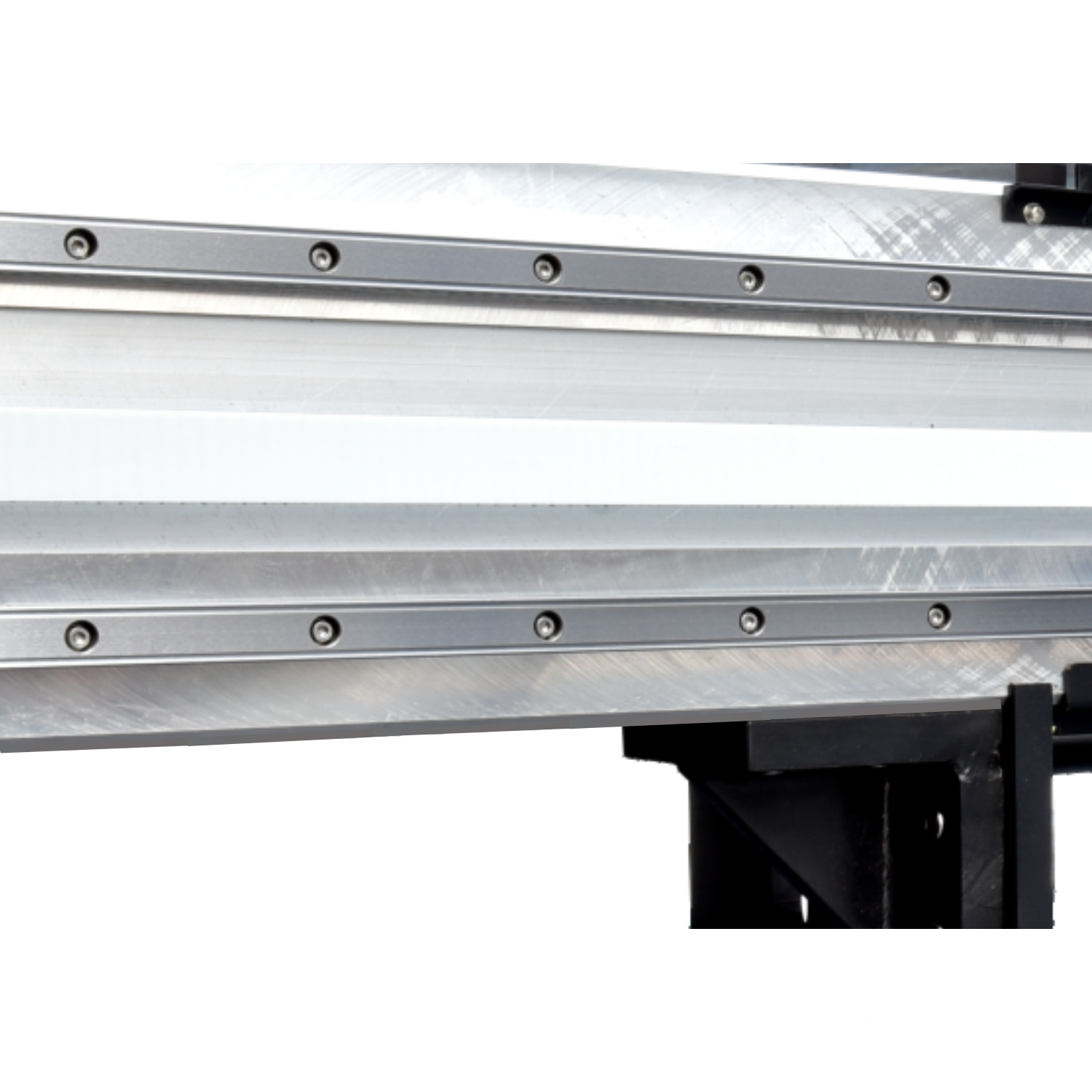

  • Imported guide rail: THK silent guide, more smooth, higher printing accuracy.

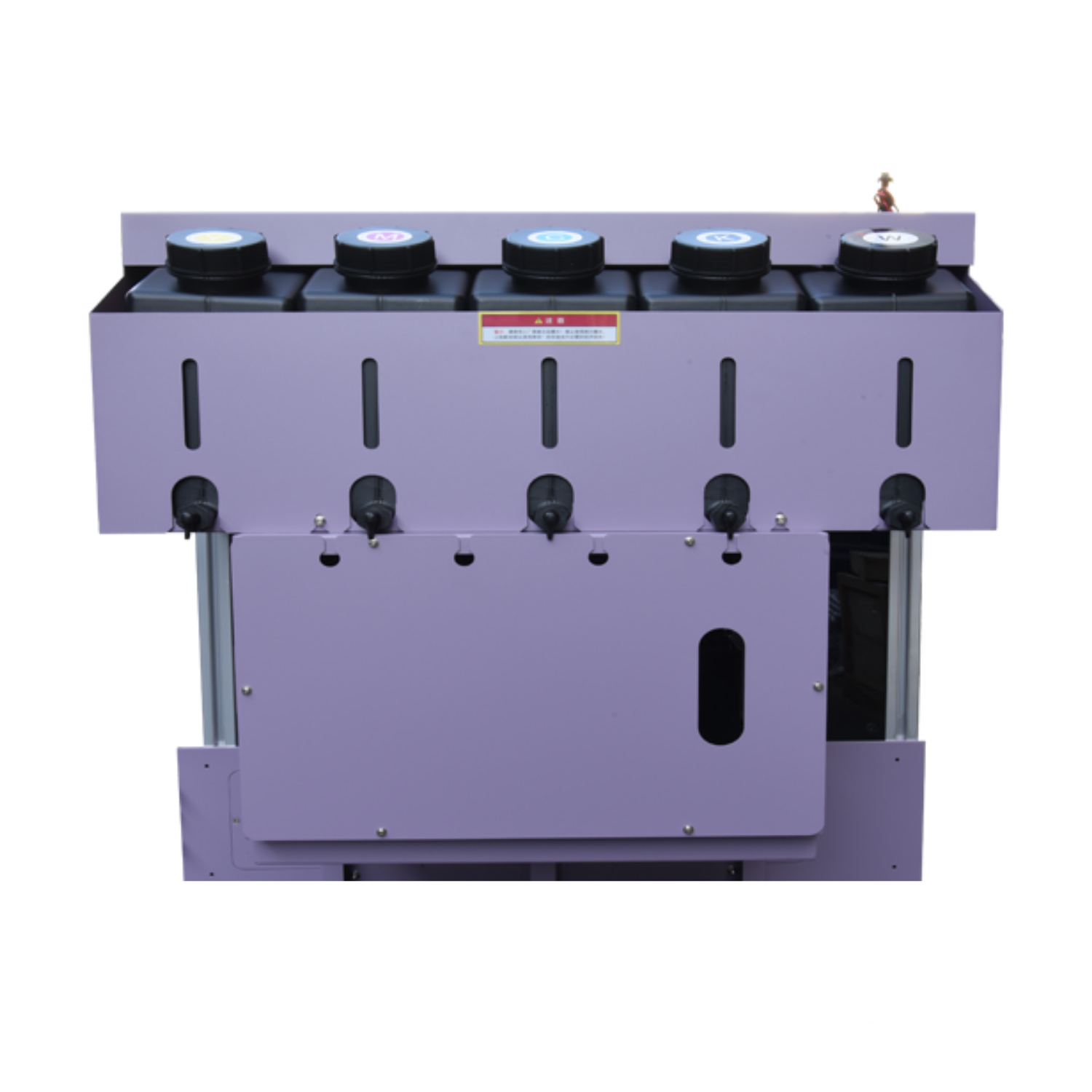

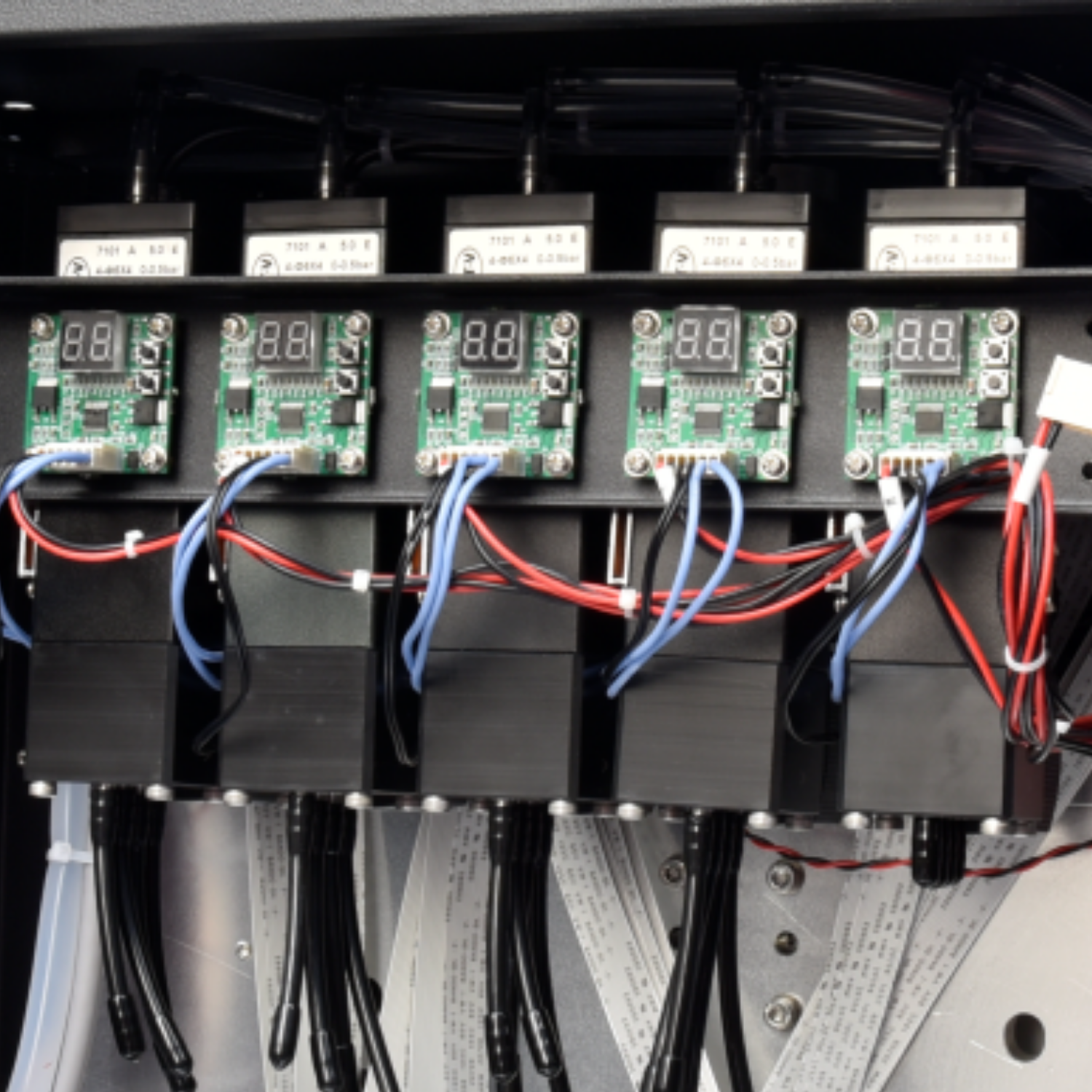

  • Ink shortage alarm + white ink stirrer: Intelligent ink supply system to ensure the smoothness of printing.
  • Secondary ink cartridge heating device (UV special): Ensure smooth ink printing without flying ink, color to the best.
  • HYBRID MESH BELT PRINTER IN LILAC
  • HYBRID MESH BELT PRINTER IN LILAC
  • HYBRID MESH BELT PRINTER IN LILAC
  • HYBRID MESH BELT PRINTER IN LILAC
  • HYBRID MESH BELT PRINTER IN LILAC
  • HYBRID MESH BELT PRINTER IN LILAC

SPECIFICATION

Product Parameters
  • Print head type: Epson / Ricoh (Konica for 3.2m or 5.3m hybrid printer)
  • Number of printheads: 1-8 pcs
  • Ink color: CMYK/LCLM/W/V
  • Cartridge capacity: 3500ml/color
  • Ink supply method: Negative or Positive pressure continuous ink supply
  • Ink curing: LED curing
  • Print width: 1820mm
  • Media type: Leather, soft film, car sticker, glass sticker, PVC, fabric, wallpaper, etc.
  • Media thickness: 0-80mm
  • Paper take-up device: High power automatic take-up and releasing system
  • Operating system: Win7 / Win10 64bit
  • Operating language: Chinese / English
  • Print Interface: USB3.0
  • RIP software: MainTop6.0, Photoprint, Neostampa
  • Power parameters: 200-240V, 50/60Hz, 32A
  • Power (W): 3000W
  • Environmental requirements: Independent clean, low-dust, low-light, well-ventilated work space. Working temperature: 20°C-28°C, humidity: 40%-70% (non-condensing)
  • Image format: JPG / TIFF / PDF / PSD
  • Machine size: 3350mm x 1370mm x 1386mm (LxWxH)
  • Machine weight: 850kg
  • Computer configuration requirements:
    • Win7/10 64-bit system (pure version)
    • Win10 system must "disable digital signature"
    • CPU: I5 6500 or above
    • Memory: 16G or above
    • C disk: 250G or more (solid state drive recommended)
    • Monitor: 17-inch flat screen monitor, true color display card, support for resolutions ablve 1024X768
