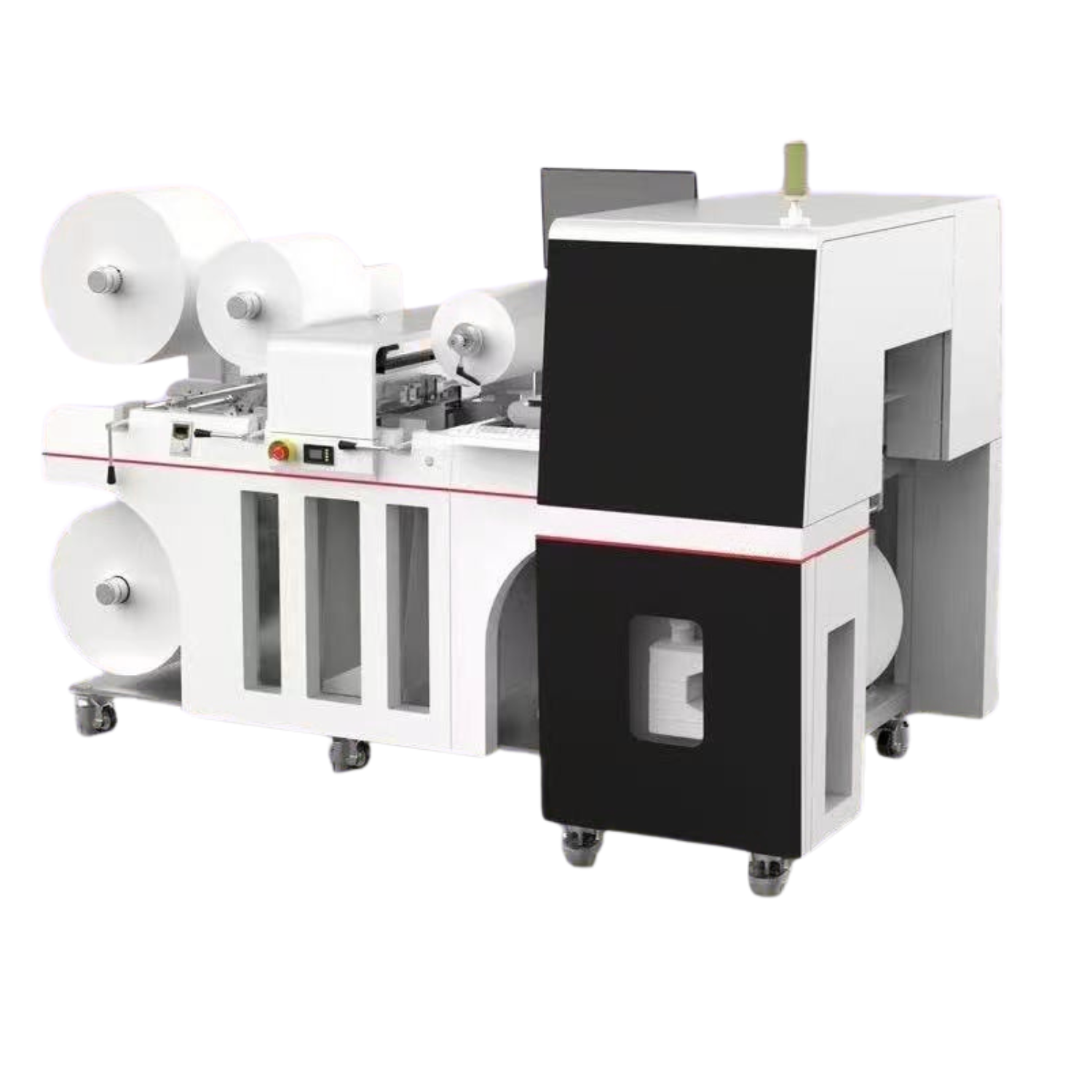

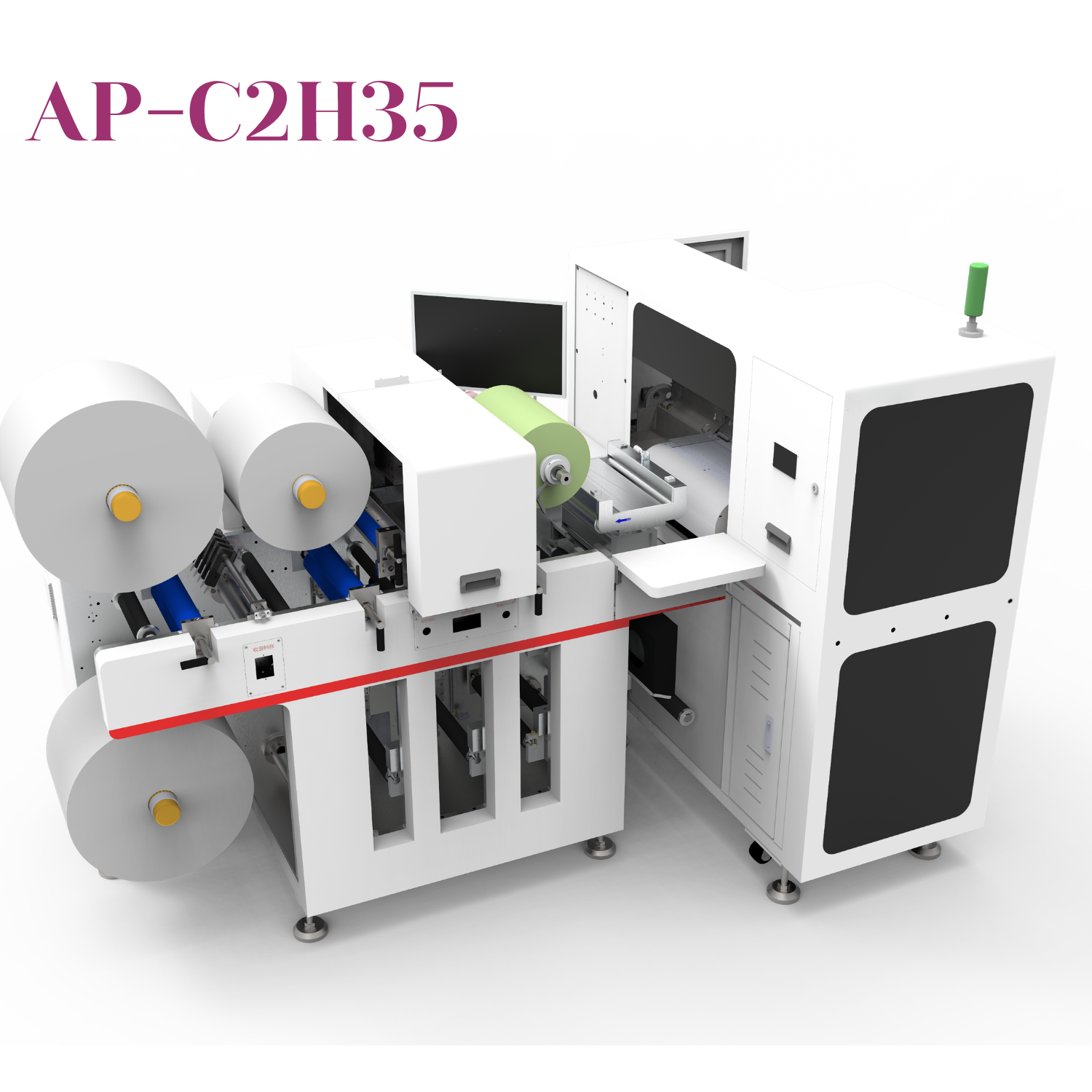

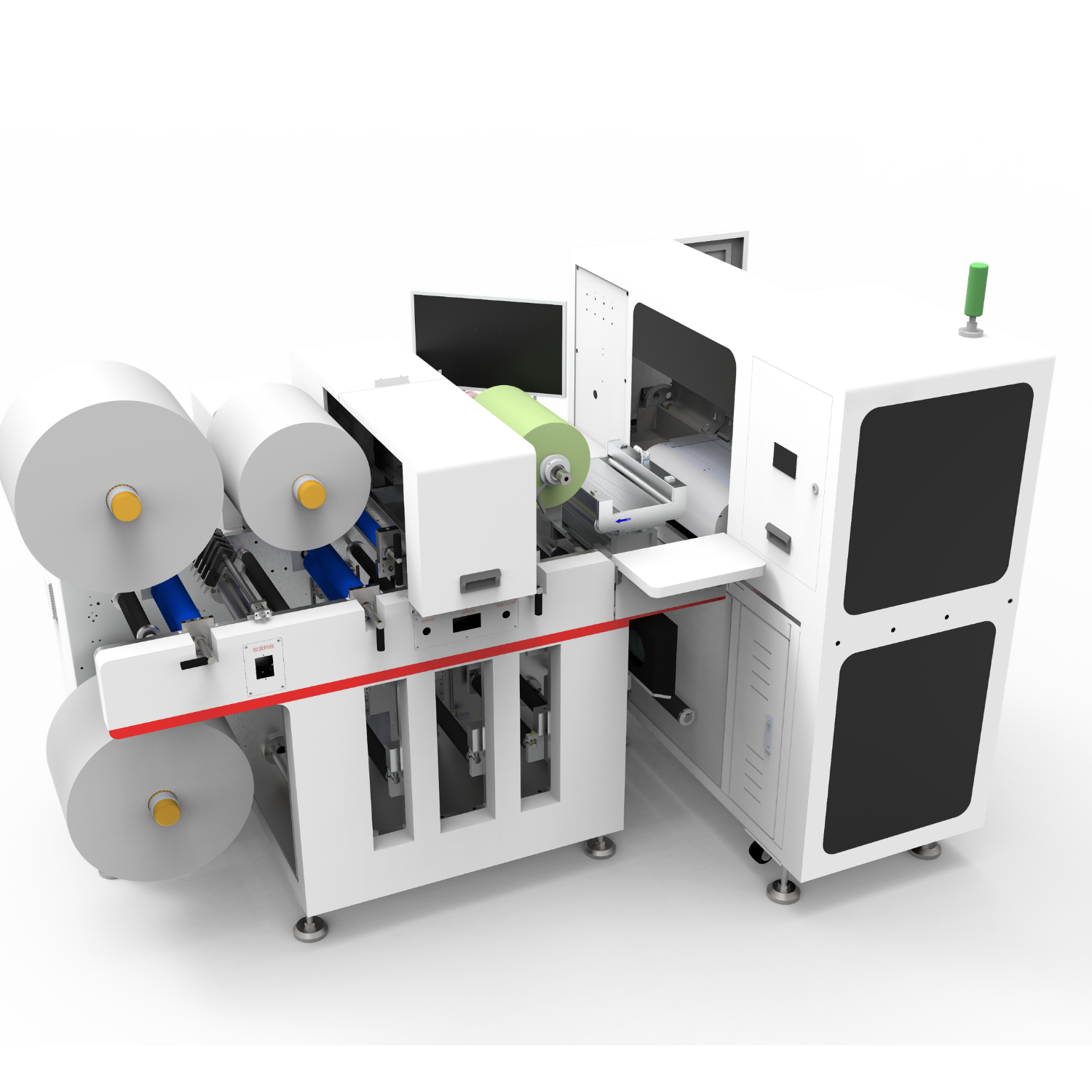

Digital Print and Cut Intelligent Label Machine

No.AP-C2H35
An all-in-one integrated system combining printing, drying, laminating, die-cutting, waste removal, slitting, and roll up.
  • High-precision digital printing: clear, flawlessly fast, and error-free for seamless runs.
  • Vibrant prints on non: coated paper-brilliant colors without the need primer coatings.
  • Variable data printing: seamless mid-run changes for dynamic, personalized prints.
  • Quick, intelligent drying: engineered for industrial continuous printing.
  • Single-person operation with minimal maintenance: reducing operational costs.
  • Digital Print and Cut Intelligent Label Machine
  • Digital Print and Cut Intelligent Label Machine
  • Digital Print and Cut Intelligent Label Machine

SPECIFICATION

  • Function‌: Printing, Drying, Laminating, Die-cutting, Waste Removal, Slitting, and Roll up
  • ‌Print Head Type‌: I3200
  • ‌Print Head number‌: 2pcs
  • ‌Ink Supply System‌: 1500ml Large capacity Automatic Ink Supply System
  • ‌Ink‌: Pigment Ink
  • ‌Drying Method‌: Multi-stage Smart Infrared Drying
  • ‌Printing Speed‌: 1500mm/min
  • ‌Printing Resolution‌: 720*1200dpi
  • ‌Printing Width‌: ≤350mm
  • ‌Paper Thickness‌: ≤300g
  • ‌Die-cutting Speed‌: 100-1000mm/min
  • ‌Paper Capacity‌: 1000m
  • Paper Roll Diameter‌: ≤500mm
  • ‌Laminating Roll Diameter‌: ≤300mm
  • ‌Rewinding Roll Diameter‌: ≤500mm
  • ‌Waste Removal Roll Diameter‌: ≤300mm
  • ‌Cutting Pressure Accuracy‌: ±0.01mm
  • ‌Die-cutting Accuracy Error‌: ±0.1mm
  • ‌Maximum Jump Distance‌: 300mm
  • ‌Machine Dimensions‌: 2440x1563x1467mm (LxWxH)
  • ‌Motion System‌: Full-machine Servo Motor
  • ‌Control Software‌: Smart Layout Edge Output System
  • ‌Power Supply‌: Single-phase 220VAC, 50/60HZ
  • ‌Power‌: 6600W
  • ‌Operating Environment‌: Temperature: 18℃-28℃, Humidity: 35%-70%RH
