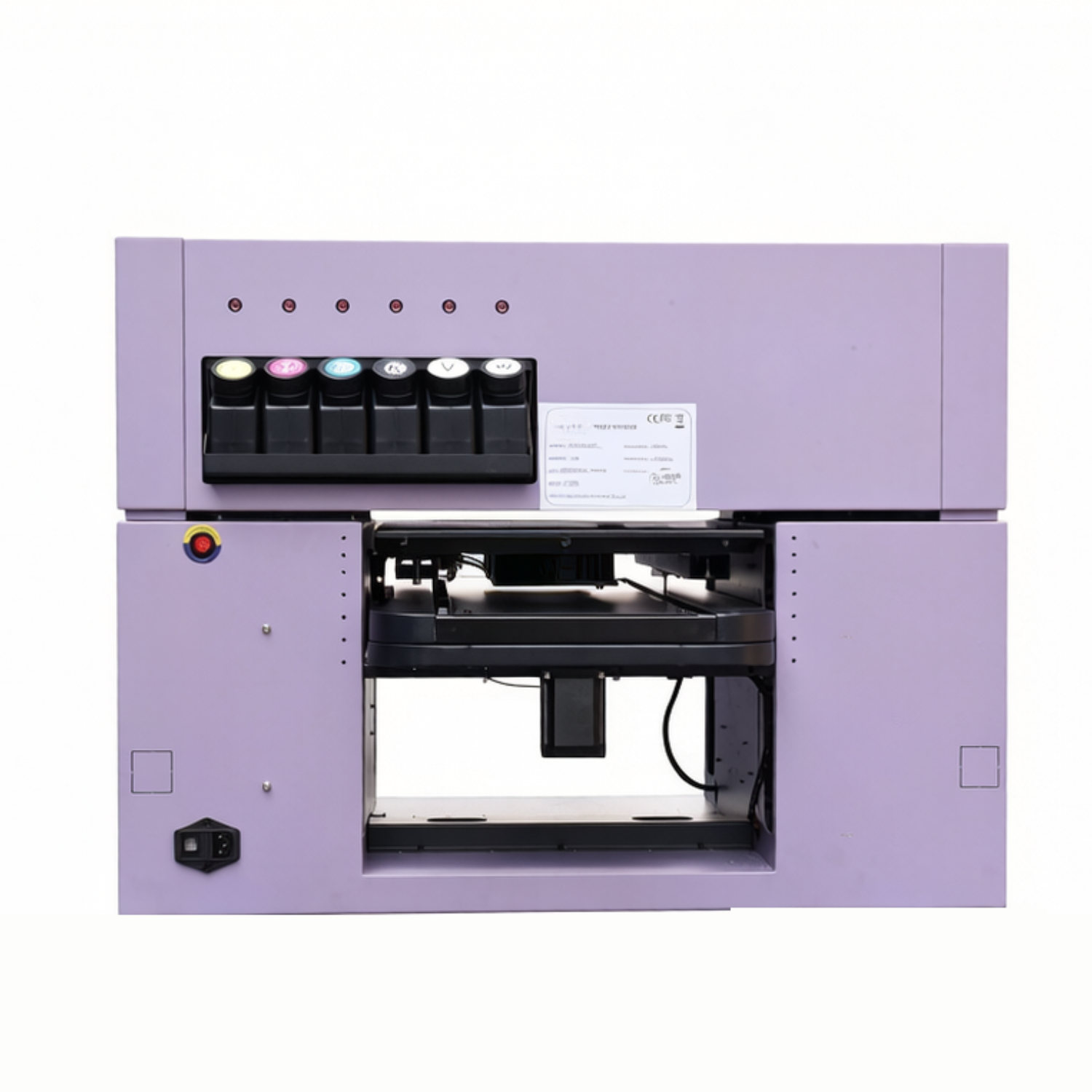

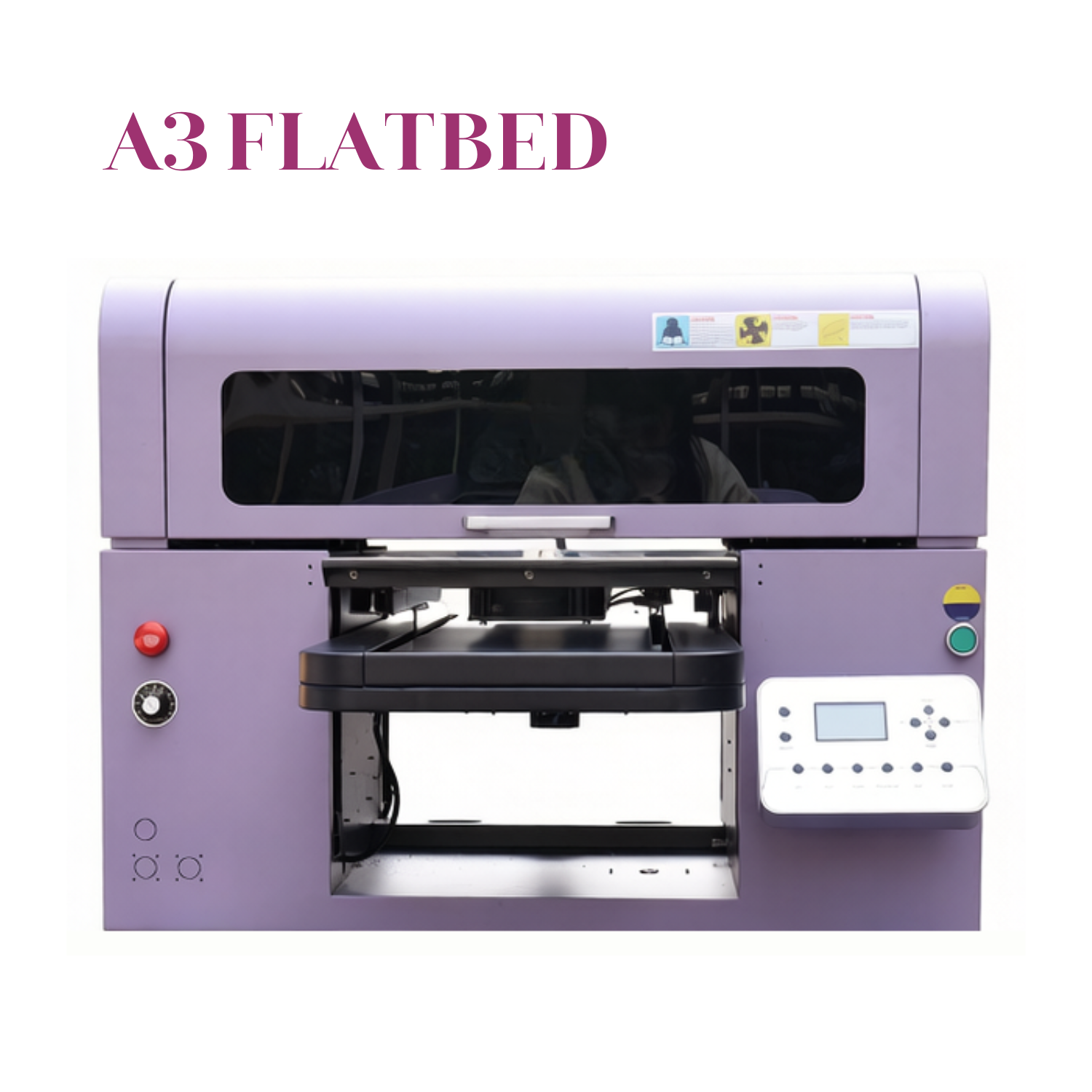

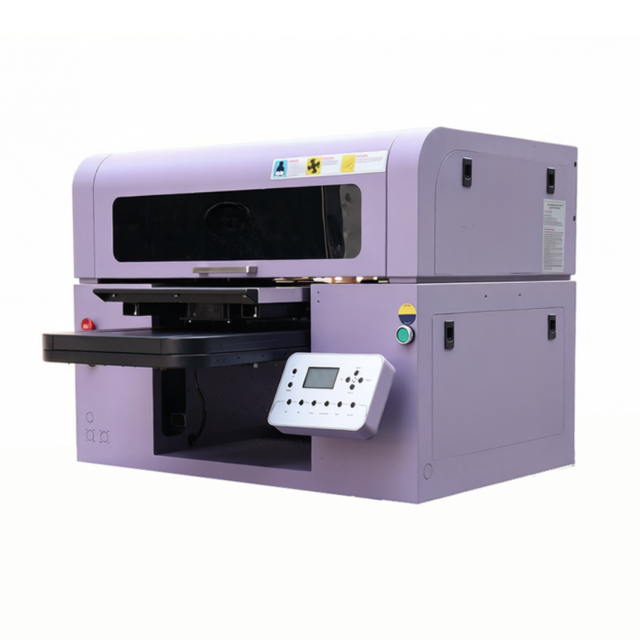

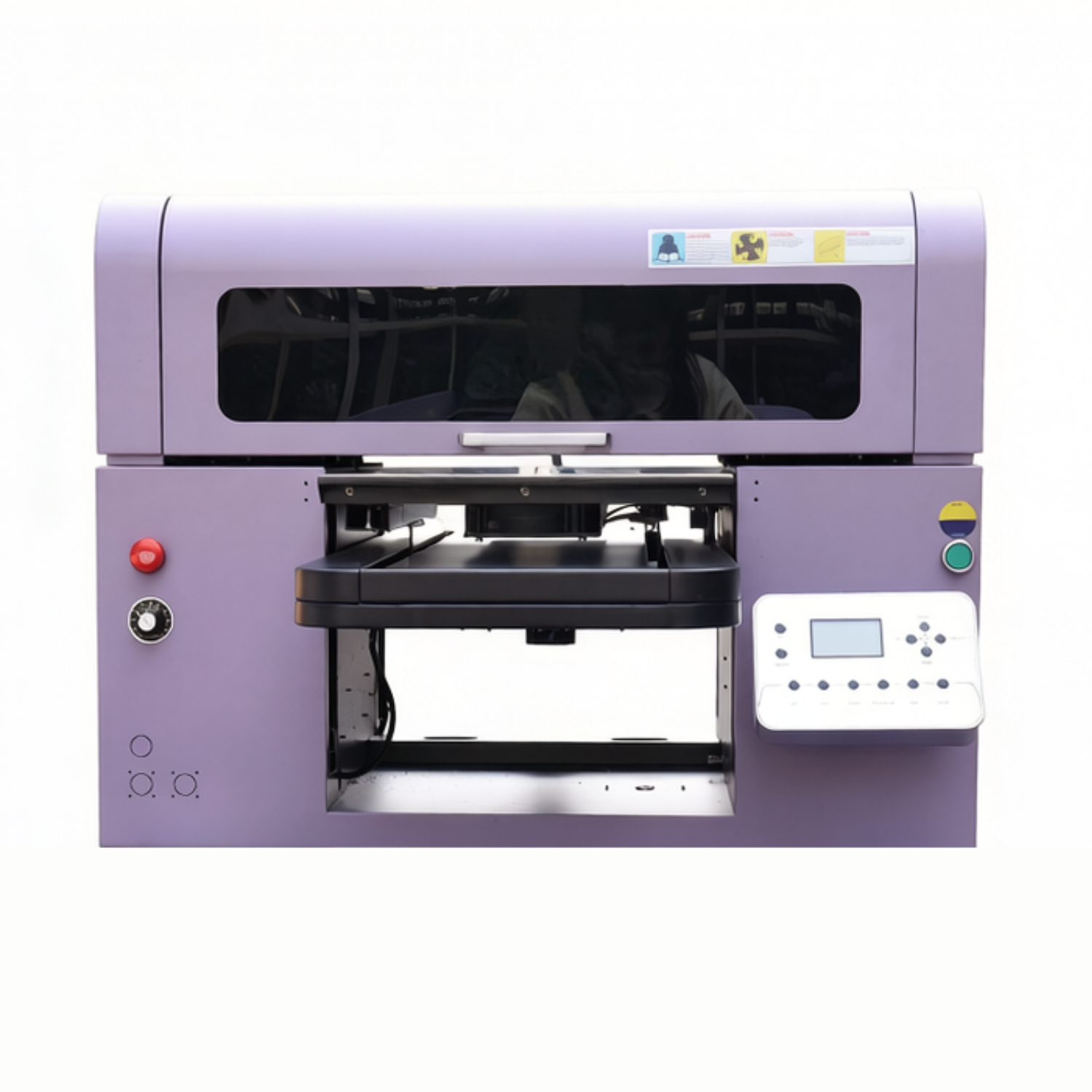

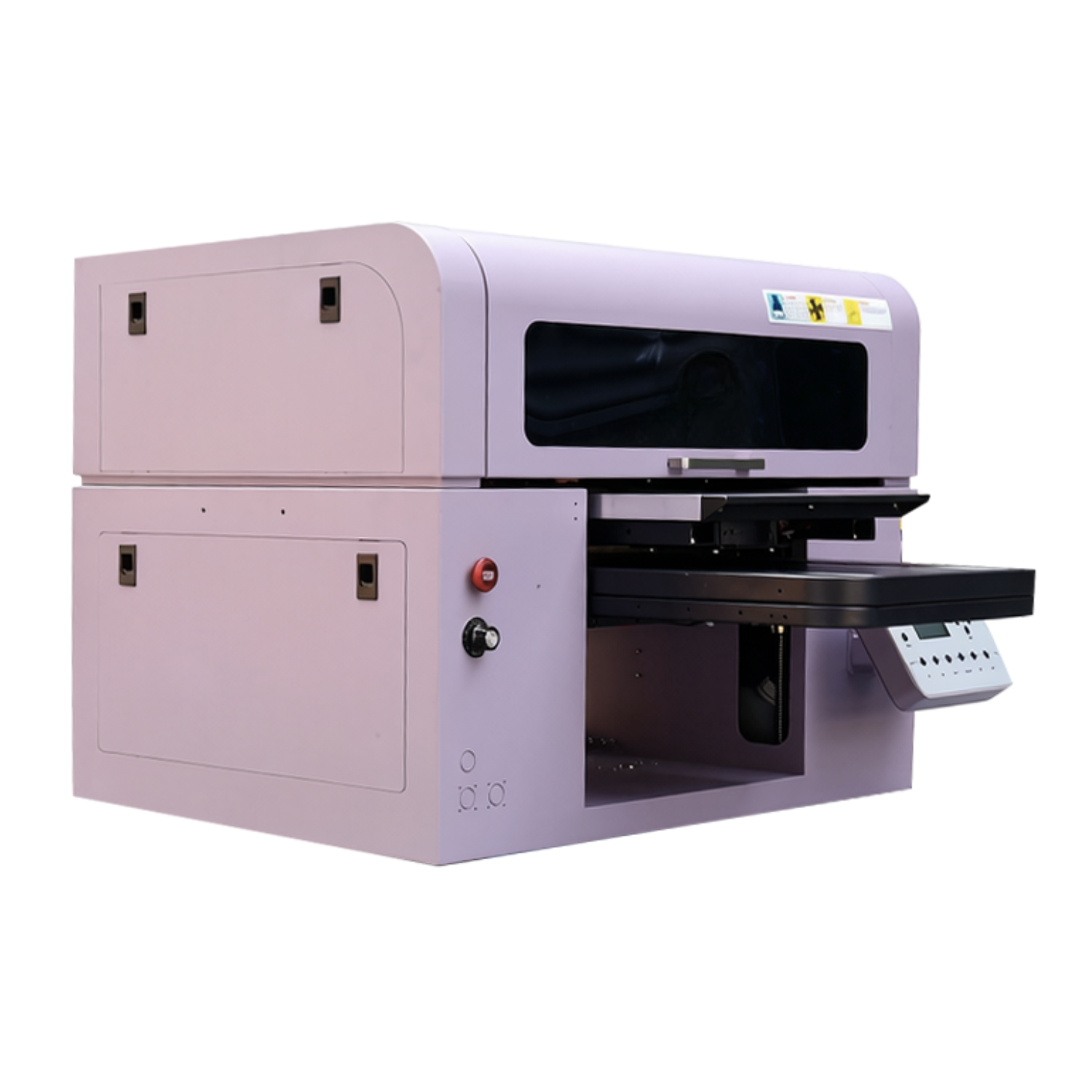

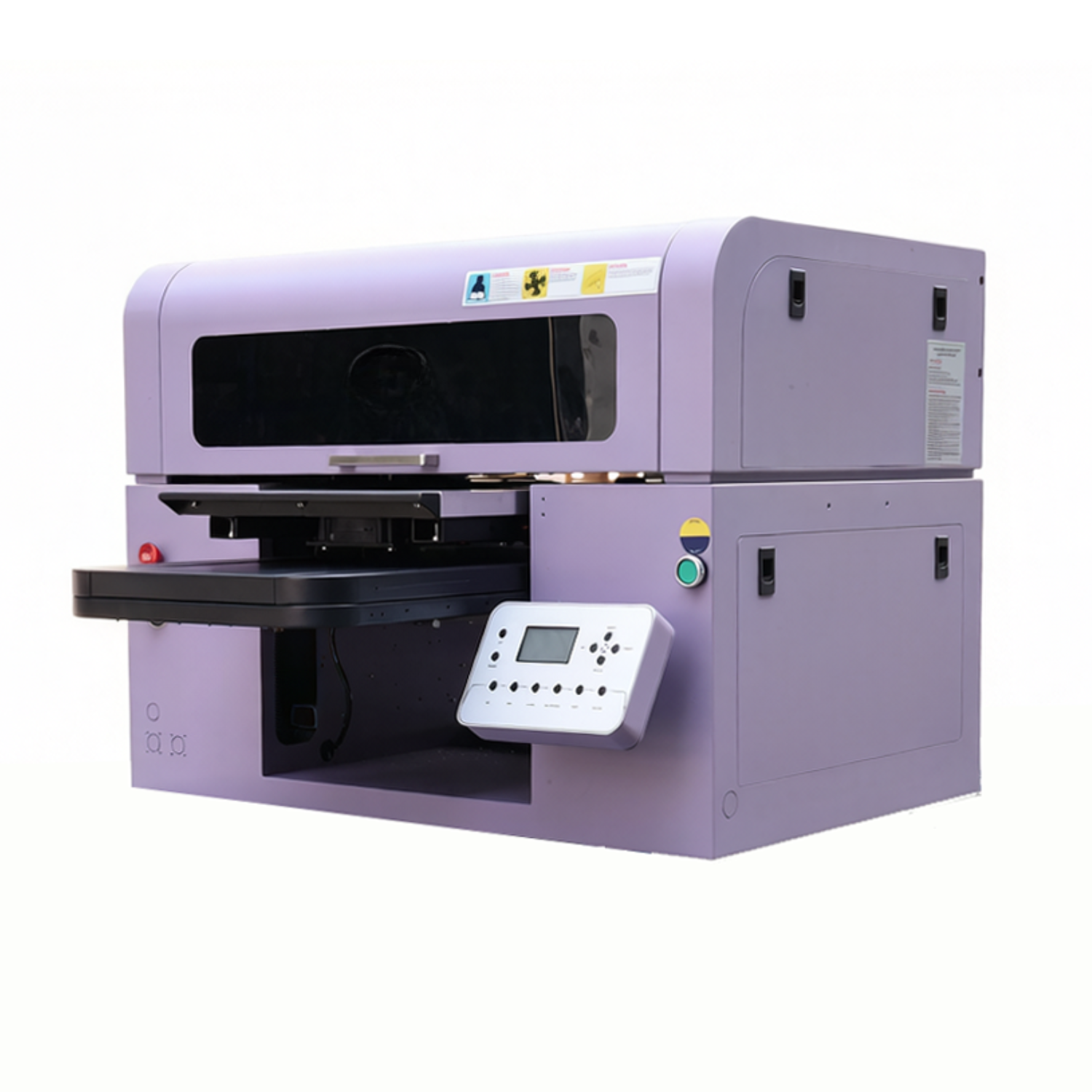

A3 FLATBED PRINTER

No.A3 FLATBED
HIGH QUALITY MACHINE CONFIGURATION.
  • Widened Platform: It can better adsorb materials, make printing more stable.
  • LED UV Lamp: Equipped with high-power UV LED chips, it intelligently adjusts curing power and exposure time to adapt to different materials and ink thicknesses.
  • Cylinder/Pen Fixture: Optional cylinder/pen fixture enables printing on cylindrical or spherical objects such as glass bottles and pens.
  • Silent Guide Rail & Lead Screw Drive: Ensure stable printhead movement and platform lifting and lowering, high precision, low noise, and long lifespan.
  • A3 FLATBED PRINTER
  • A3 FLATBED PRINTER
  • A3 FLATBED PRINTER
  • A3 FLATBED PRINTER
  • A3 FLATBED PRINTER

SPECIFICATION

  • Print Head Type: F1080/I3200-HD
  • Print Head Number: 1/2 pcs
  • Print Head Height: 0-120mm
  • Print Speed: 1.5 ㎡/h
  • Ink Type: UV ink
  • Ink Color: CMYK+W (white color)+V (varnish)
  • Ink Cartridge Capacity: 250ml / color
  • Ink Supply Method: Positive pressure continuous ink supply
  • Printing Width: 280x450mm
  • Printing Mode: Color only / w+color / color+w / w+color+v
  • Fixture Confiquration: Cylinder/Pen fixture (optional)
  • Curing System: LED UV Light cured
  • Operation Language: Chinese / English
  • Operating System: Win11 / Win 10 / Win 7
  • Print Head Cleaning: Fully automatic cleaning with anti-clogging, flash spraying, and automatic moisturizing functions
  • Media Type: Tablets, cubes, and cylinders can be printed directly; Suitable for materials such as glass, metal, plastic, wood, and cardboard.
  • Sensor Device: Geomagnetic magnets automatically measure height sensing
  • Work Enironmental: Temperature range--18-25°C, Humidity range--35-65%Rh
  • Printing Interface: Network port
  • RIP Software: Maintop 7.0 UV Edition, PhotoPrint 19 Edition
  • Power Paramaters: AC 220v, 50Hz/60Hz
  • Power: 1000W
  • Noise Level: Stand by<32dB, Operating≤ 65dB
  • Machine Size: 800x560x620mm (LxWxH)
  • Net Weight: 110kg
