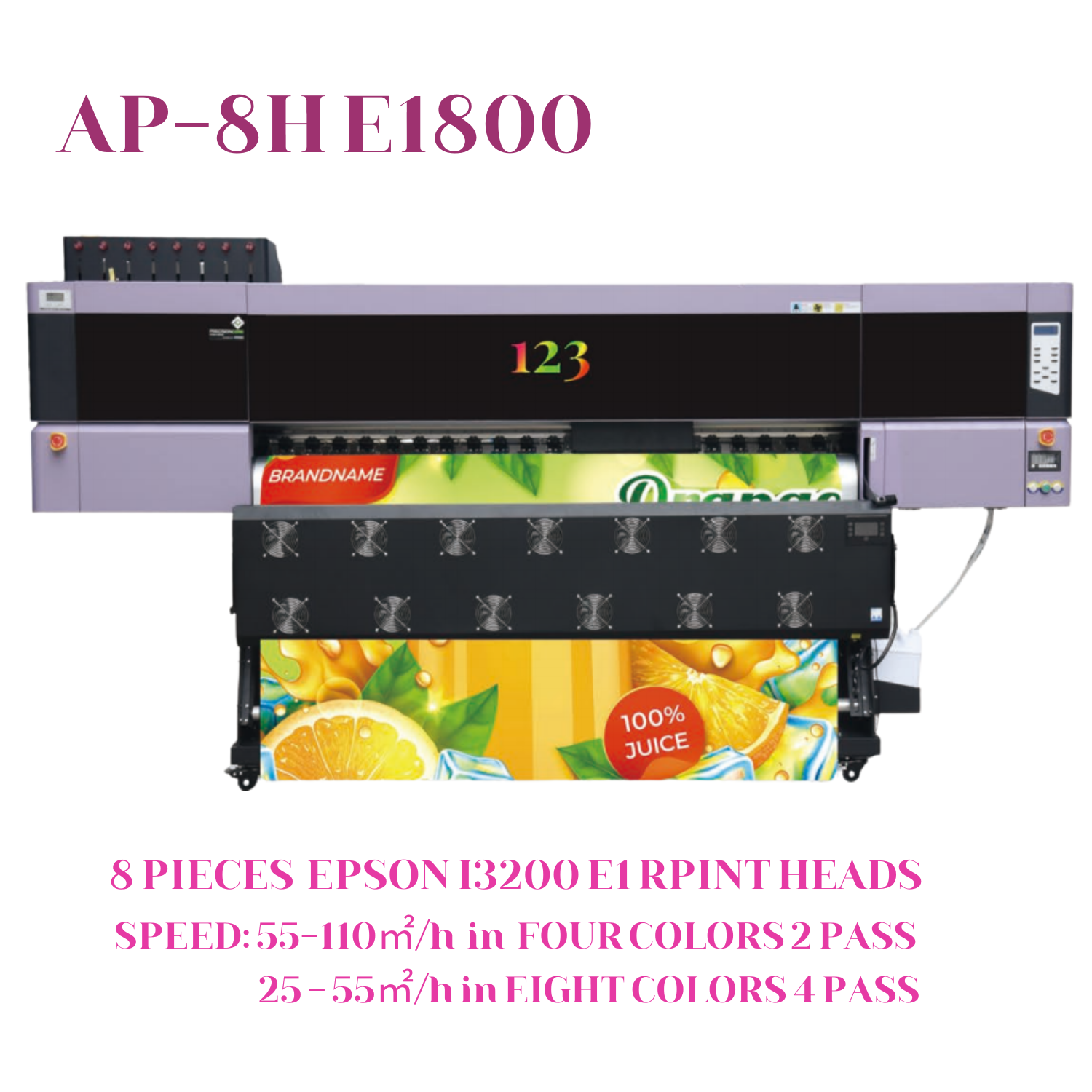

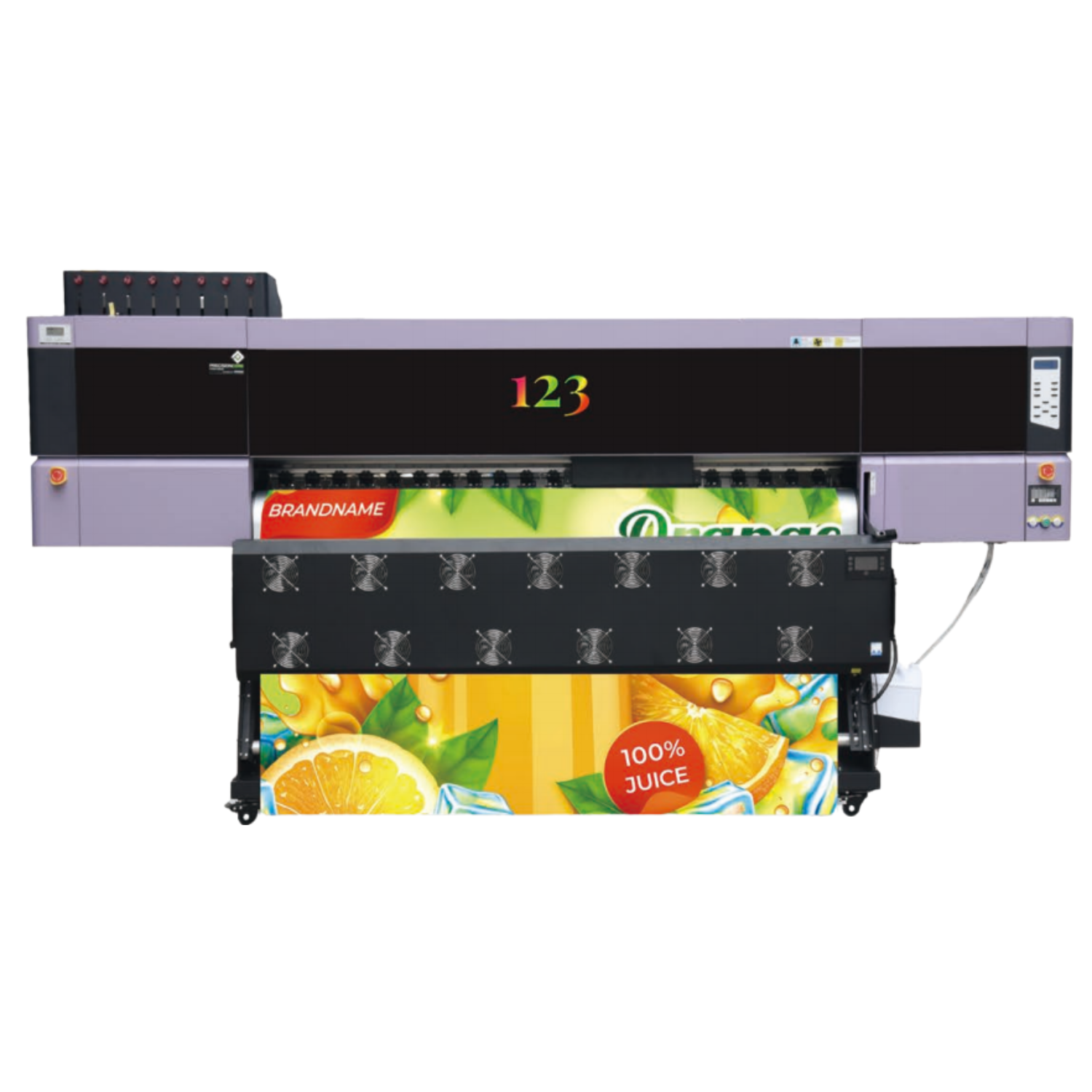

8H Eco Solvent Printer

Name: 8H Eco Solvent Printer
Brand: 123 DIGITAL TECHNOLOGY
SKU: AP-8H E1800 Hardcore Performance at Full Speed
Availability: InStock
Rating: 5 (1 reviews)

No.AP-8H E1800 Hardcore Performance at Full Speed

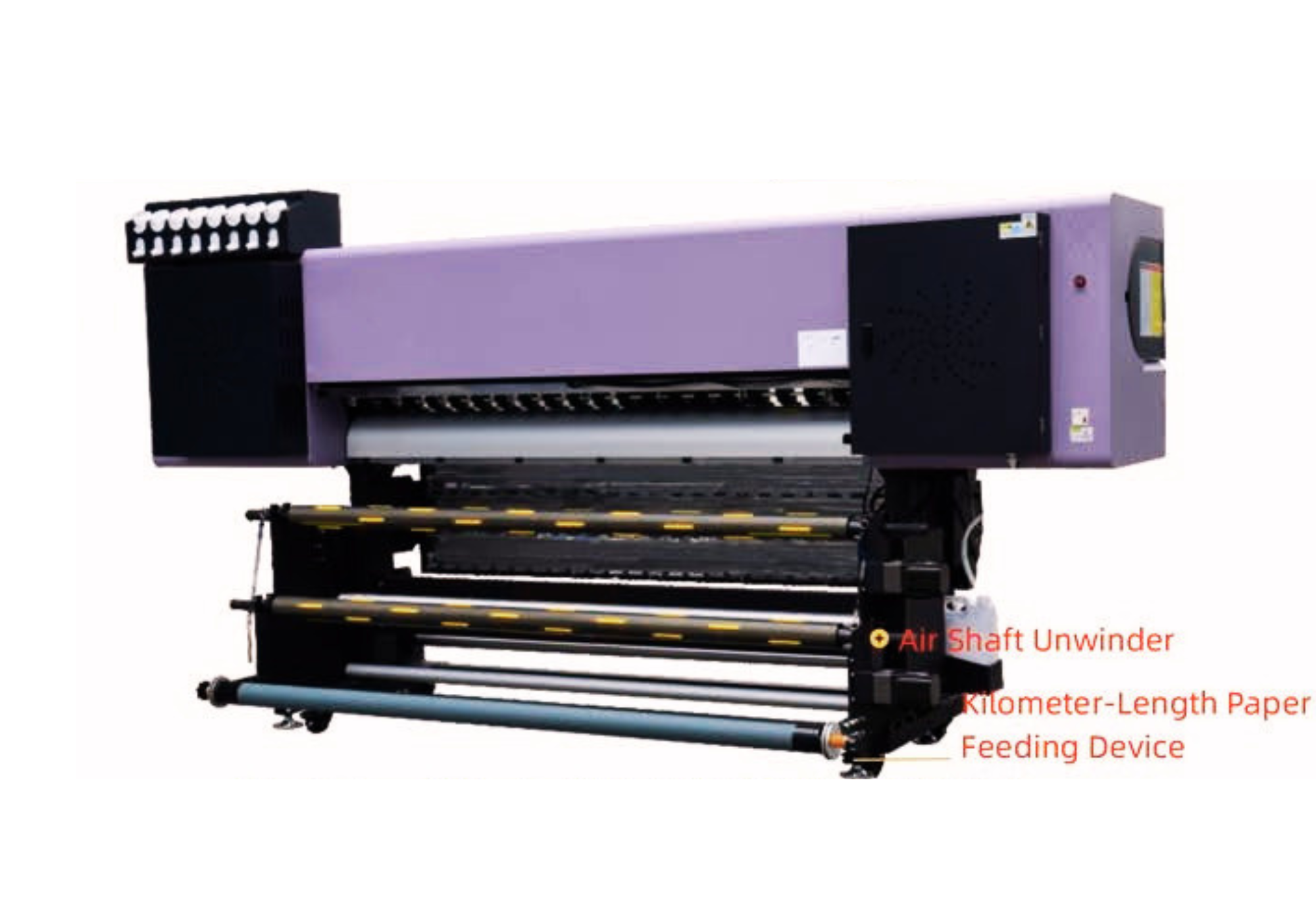

Paper Feeding Device for Kilometer-Length Rolls & High-Strength Frame

Features large steel plates on the sides forenhanced stability, supporting kilometer-length paper rolls to reduce the frequency of media changes, significantly saving time and labor.

Double Guide

Using the THK imported guide rail, it has the advantages of high-speed silence, high precision and high straightness.

Paper Feed Motor

High powder Leadershine servo motor for paper feeding, greatly promise and improve the stability of feeding.

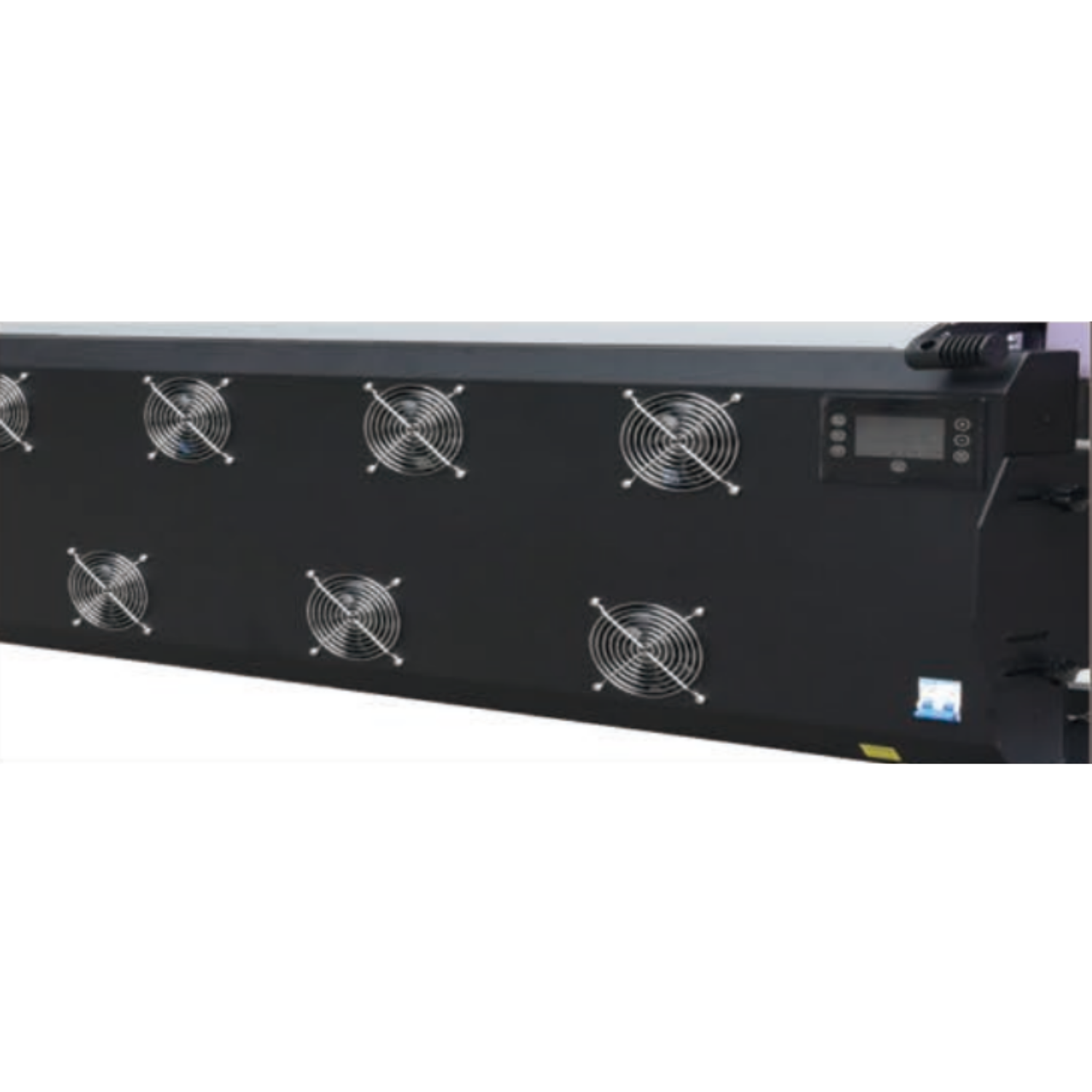

Double Control Cold/Hot Drying Fan

Intelligent heating system, can be used for heating and blowing at the same time, greatly improve the speed of taking up, better coping with the printing process.

SPECIFICATION

Product Parameters

Print Head Type: Epson I3200-E1
Print Head Number: 8 pcs
Print Head Height: 2mm-3mm
Printing Speed: Four colors 2 pass--55-100㎡/h, Eight colors 4 pass--25-55㎡/h
Cleaning: Fully automatic claning
Ink Style: ECO Solvent ink
Ink Color: 4 colors (C/M/Y/K) or 8 colors (C/M/Y/K/LC/LM/LK/LLK)
Cartridge Capacity: 5000ml / color
Ink Supply: Continuous ink supply
Print Width: 1820mm
Loadable Media Weight: 130kg (Max)
Type of Media: Sticker paper / car sticker / PVC / outdoor oil painting canvas.
Heating System: Three-stage embedded constant temperature heating system (Front, Middle, Rear)
External Infrared Device: Dual infrared heating external drying fan
Operating Language: Chinese / English
Operating System: Win10 / Win7
Work Environment: Temperature range--18-25°C, humidity range--35-65%Rh
Print Interface: Gigabit Ethernet Port
Rip Software: Maintop / Photoprint / Neostampa
Power Parameters: AC-220V, 50 / 60Hz
Power: Min--64W, Max--10000W
Noises: Min<32dB, Max<=65dB
Machine Size: 3450mm x 1240mm x 1390mm ( L x W x H)
