4H ECO SOLVENT PRINTER

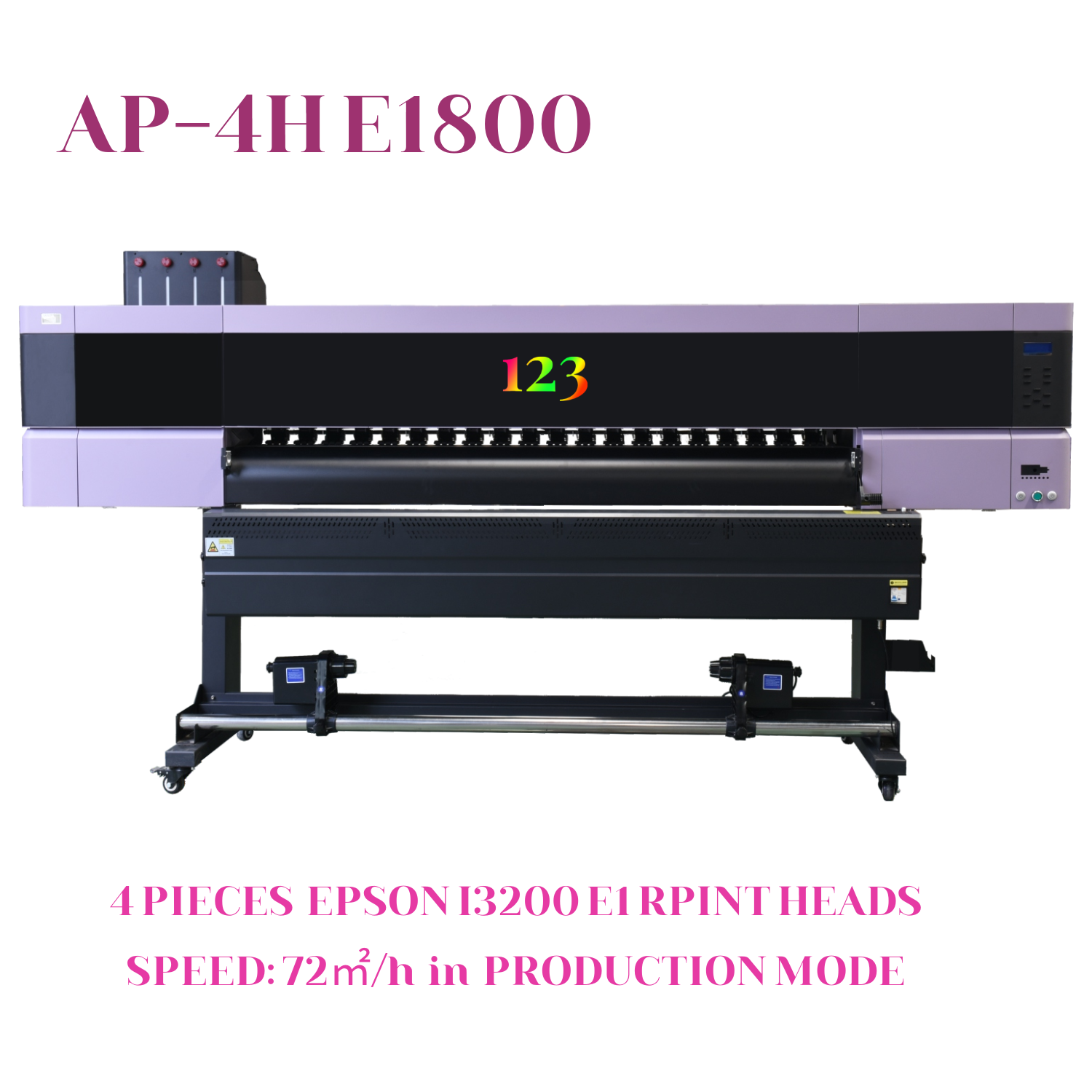

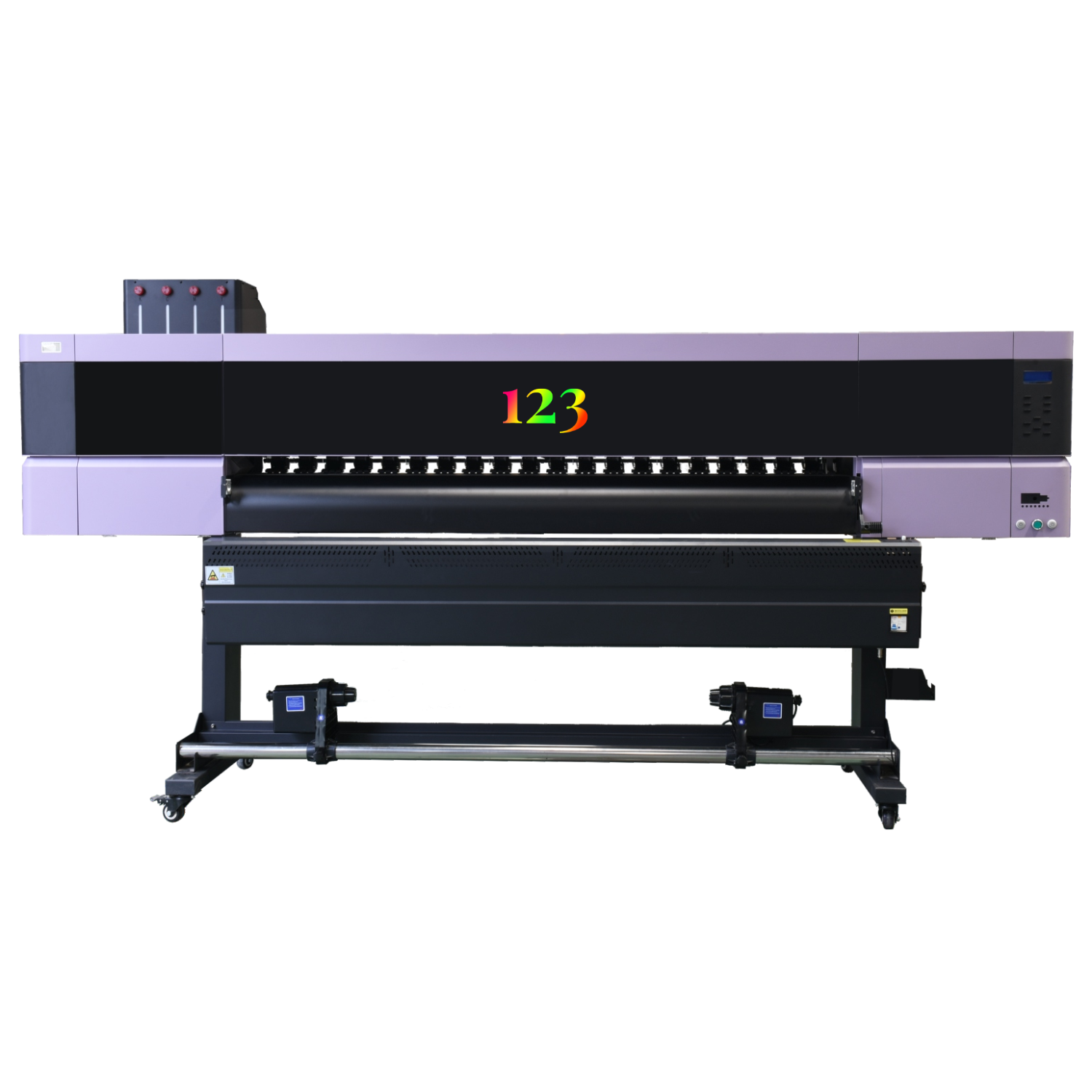

No.AP-4H E1800 Series Large-width high-speed printer
Intelligent printing and high-quality mechanical design

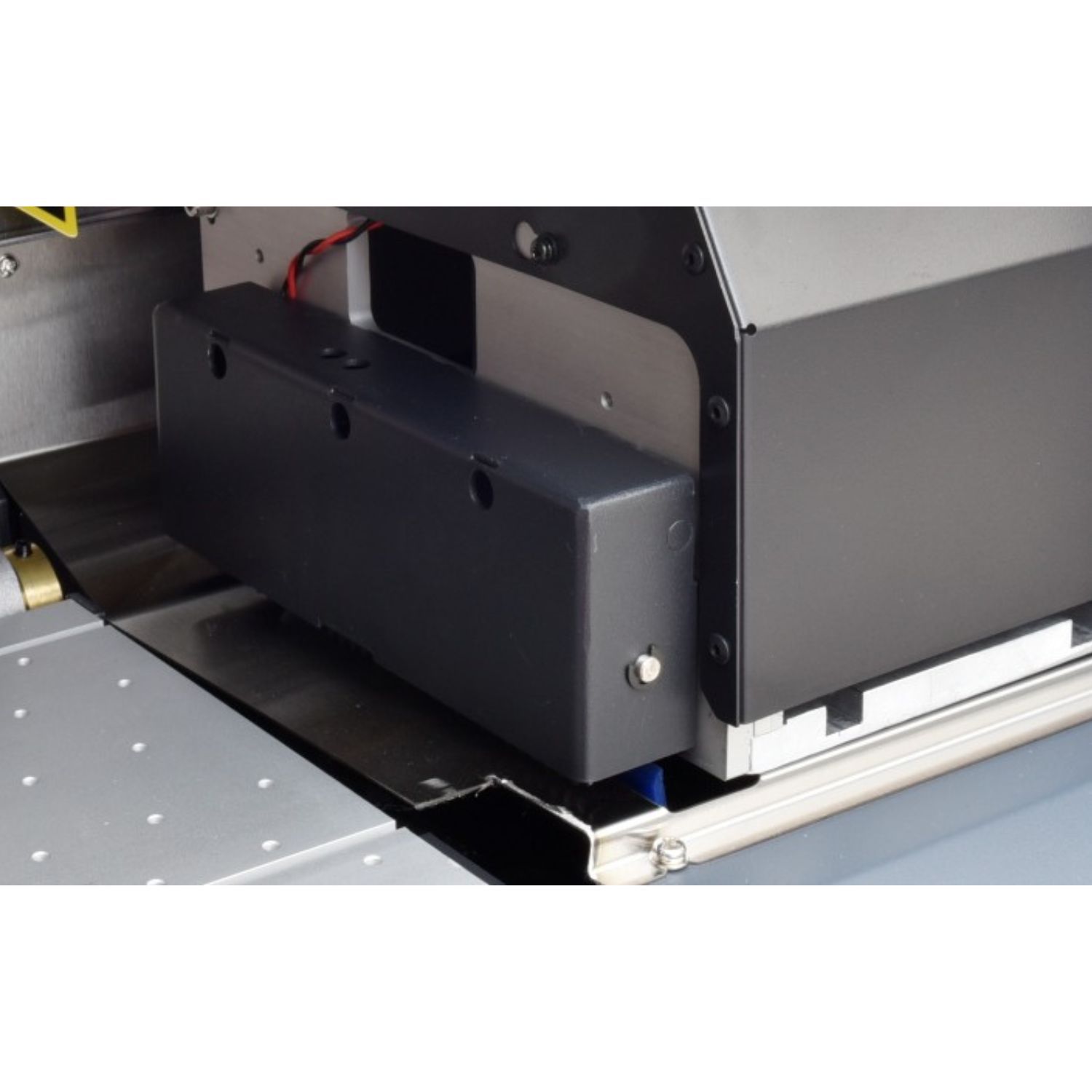

  • Print Head Anti-Collision Device: Printing process, such as encountering obstacles, that automatically stop printing.
  • Smart Media Detection: Automatically detscts whether the printing midia is used up, intelligent and worry-free.

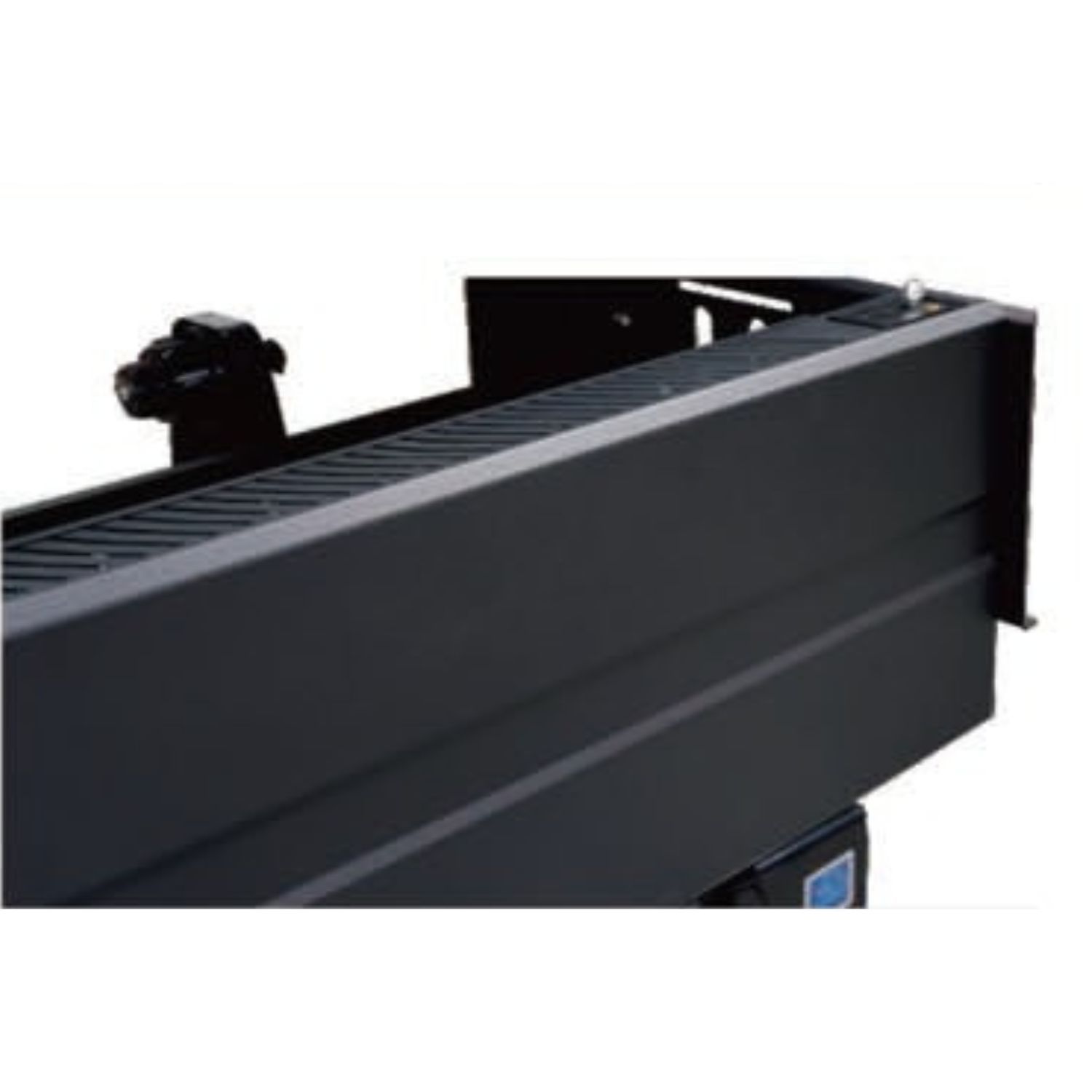

  • Intelligent External Heating Device: Drying speed is faster, and reduce energy consumption, more energy efficient.

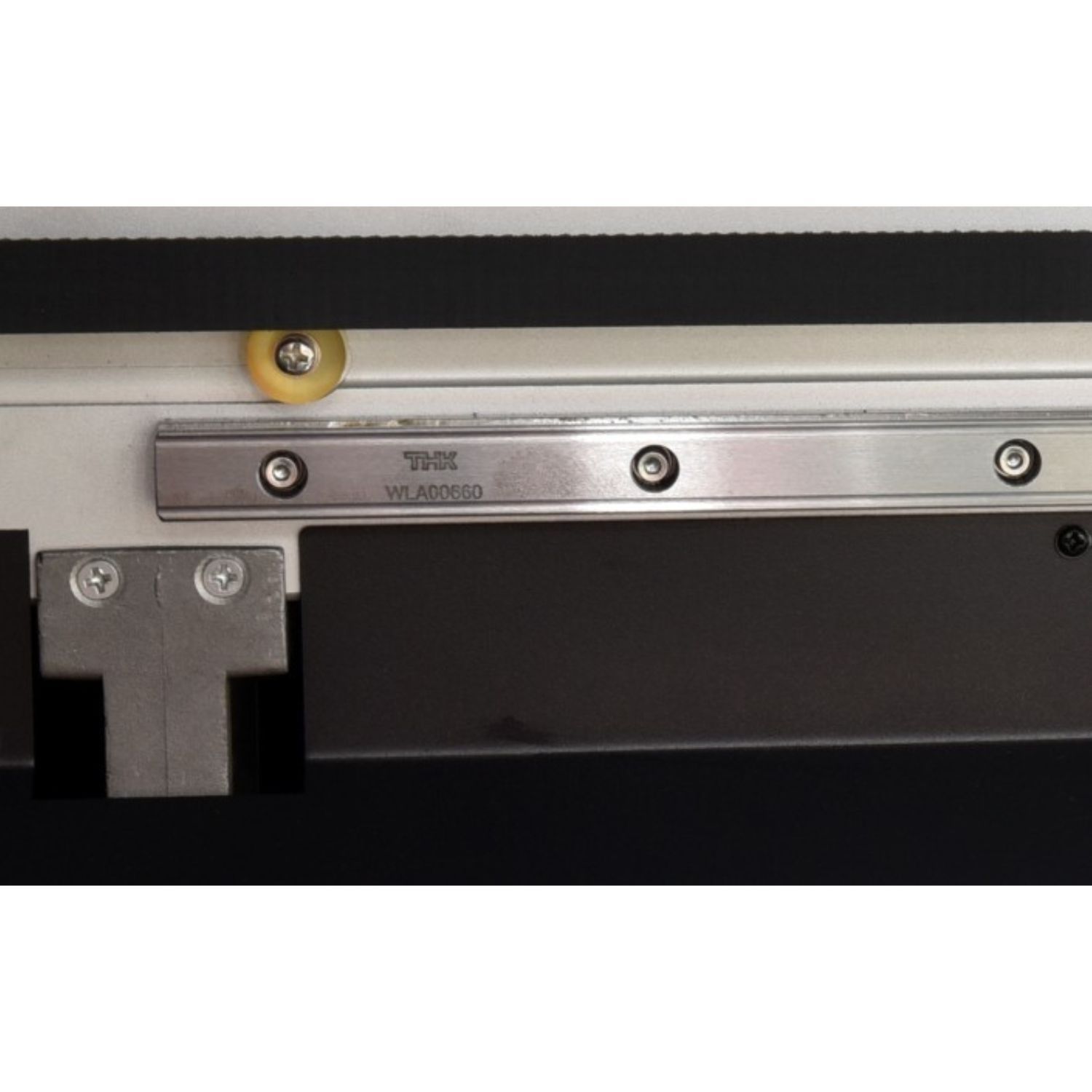

  • Imported Guide Rail: Ensure smoother printing and higher precision.

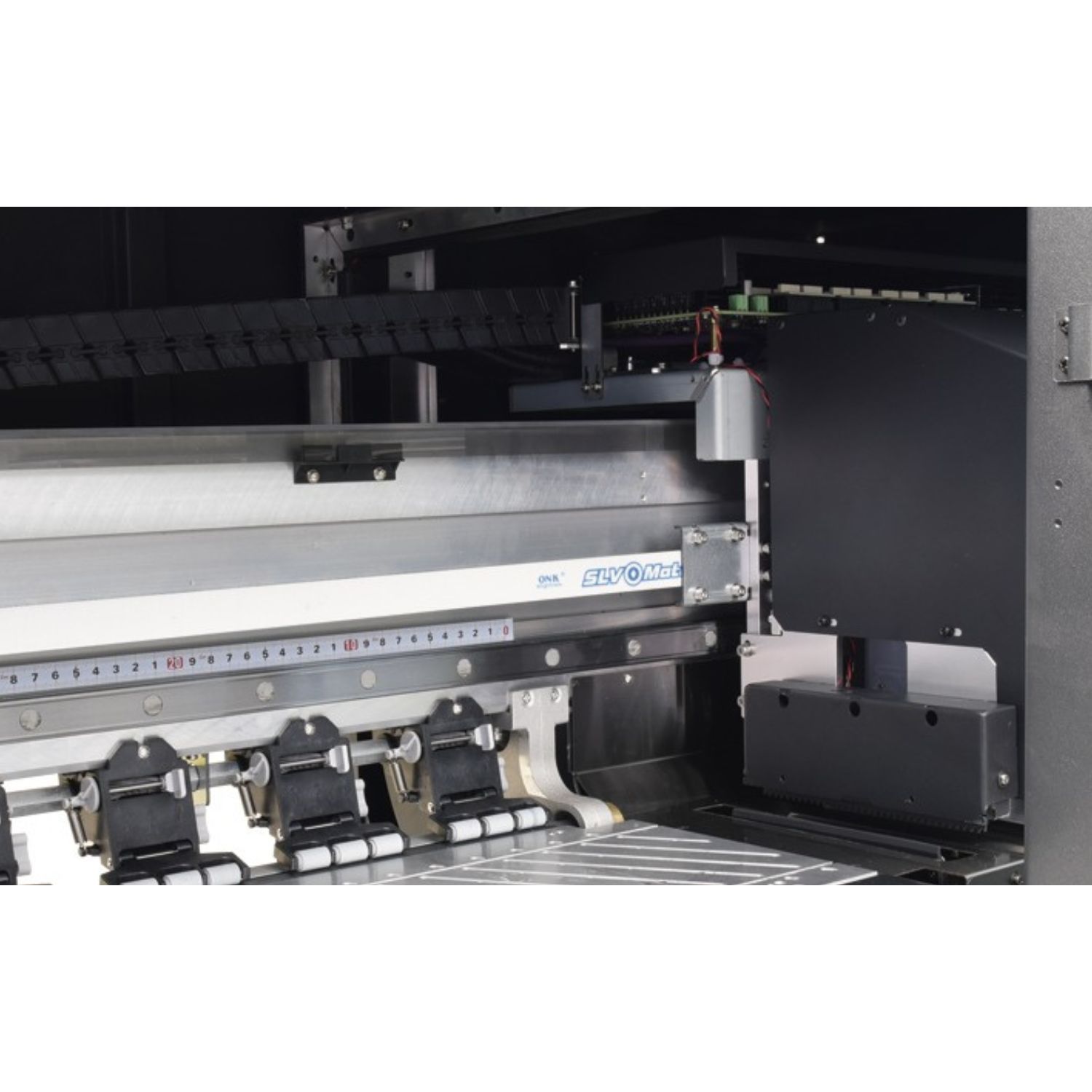

  • Three-Position Adjustable Paper Pressing Wheels: Each paper press wheel can be adjusted, independently, resulting in smoother paper feeding.

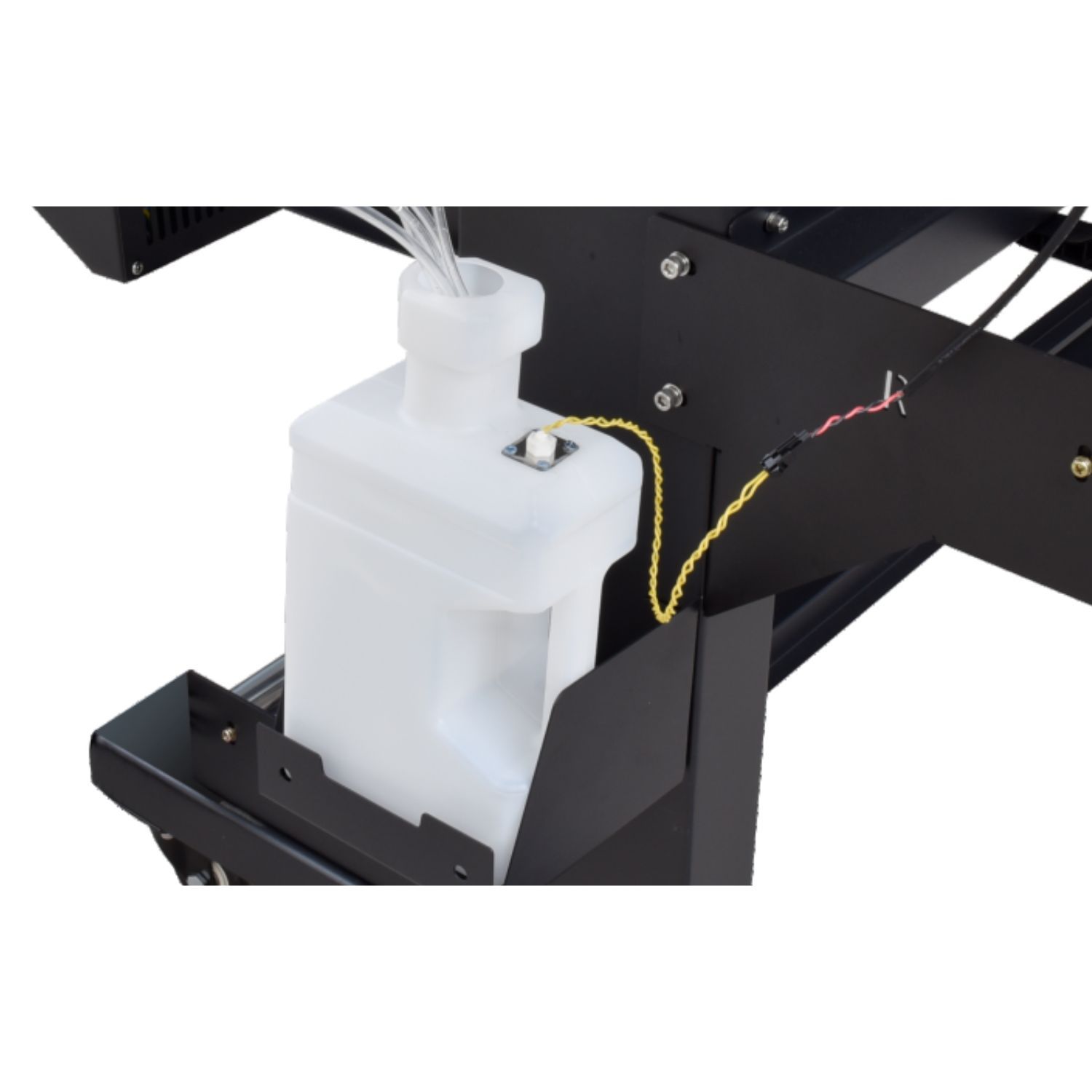

  • Ink Level Alarm: The waste ink bottle is equipped with a liquid level alarm to facilitate the timely cleaning of waste ink.
  • 4H ECO SOLVENT PRINTER
  • 4H ECO SOLVENT PRINTER
  • 4H ECO SOLVENT PRINTER
  • 4H ECO SOLVENT PRINTER
  • 4H ECO SOLVENT PRINTER
  • 4H ECO SOLVENT PRINTER
  • 4H ECO SOLVENT PRINTER
  • 4H ECO SOLVENT PRINTER

SPECIFICATION

Product Parameters
  • Printing head: Epson I3200-E1, 4 pcs
  • Printhead height: 2mm-3mm
  • Printing speed: Draft mode-92㎡/h, Production mode-72㎡/h, Quality mode-48㎡/h
  • Cleaning: Fully automatic claning
  • Ink style: ECO Solvent ink
  • Ink color: 4 colors (C/M/Y/K) or 8 colors (C/M/Y/K/LC/LM/LK/LLK)
  • Ink capacity:  3000ml / color (Ink cartridge)
  • Ink supply: Negative pressure type continuous ink supply
  • Print width: 1800mm
  • Loadable coil weight: 80kg (Max)
  • Type of media: Photopaper / canvas/banner / car sticker / heat transfer paper etc.
  • Paper take up device: Standard
  • Heating system: Front, middle and back three-stage embedded synchronous heating control system
  • External drying: Infrared heating external drying fans
  • Operating language: Chinese / English
  • Operating system: Win10 / Win7
  • Work Environment: Temperature range: 18-25°C, humidity range: 35-65%Rh
  • Print interface: Gigabit Ethernet Port
  • Rip software: Maintop / Photoprint / Wasatch
  • Power parameters: AC-220V, 50Hz / 60Hz
  • Power (W):  Min: 64W, Max: 5500W
  • Noises: Min<32dB, Max<=65dB
  • Machine size: 2247mm x 730mm x 1390mm ( L x W x H)
  • Net weight: 278kg
  • Gross weight: 318kg
