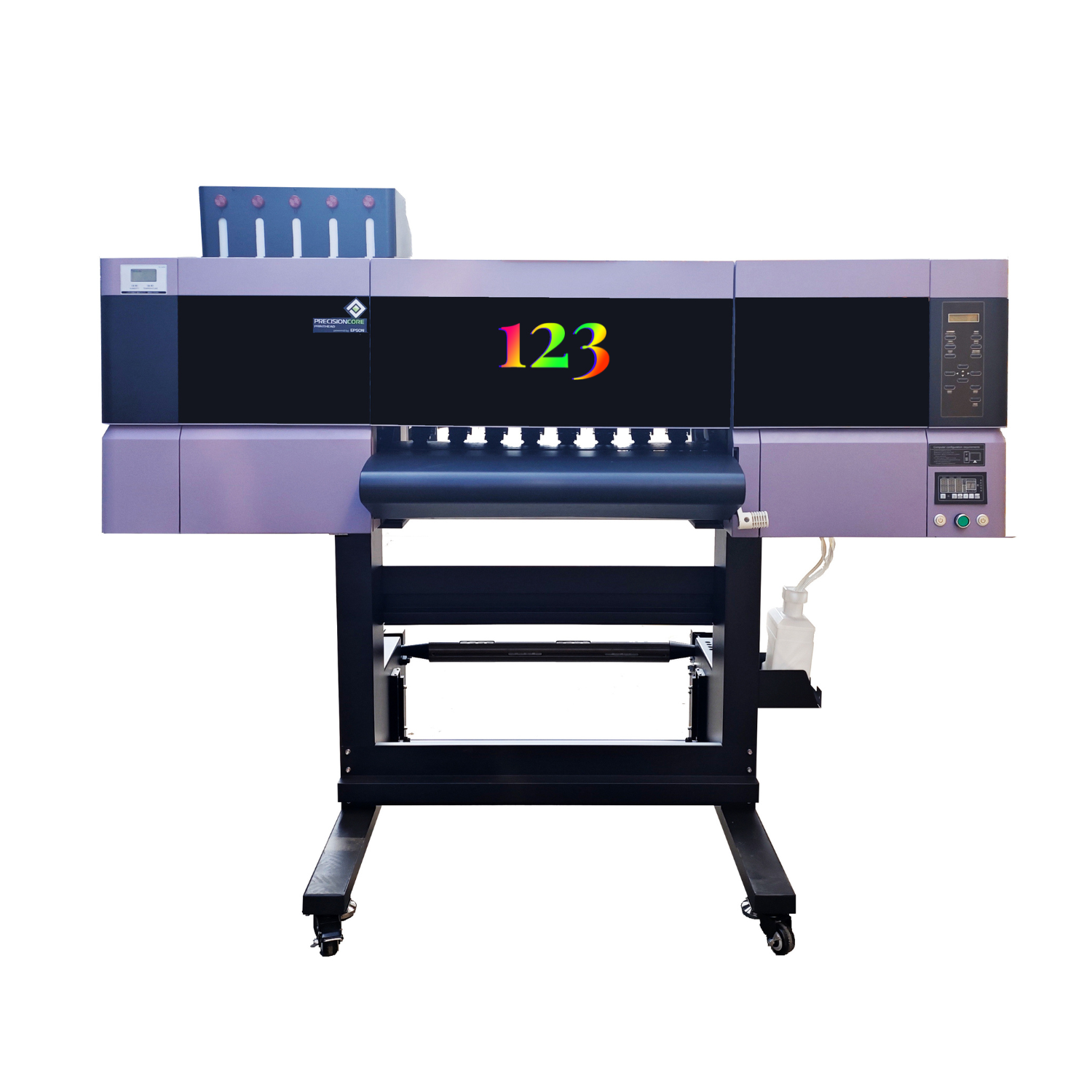

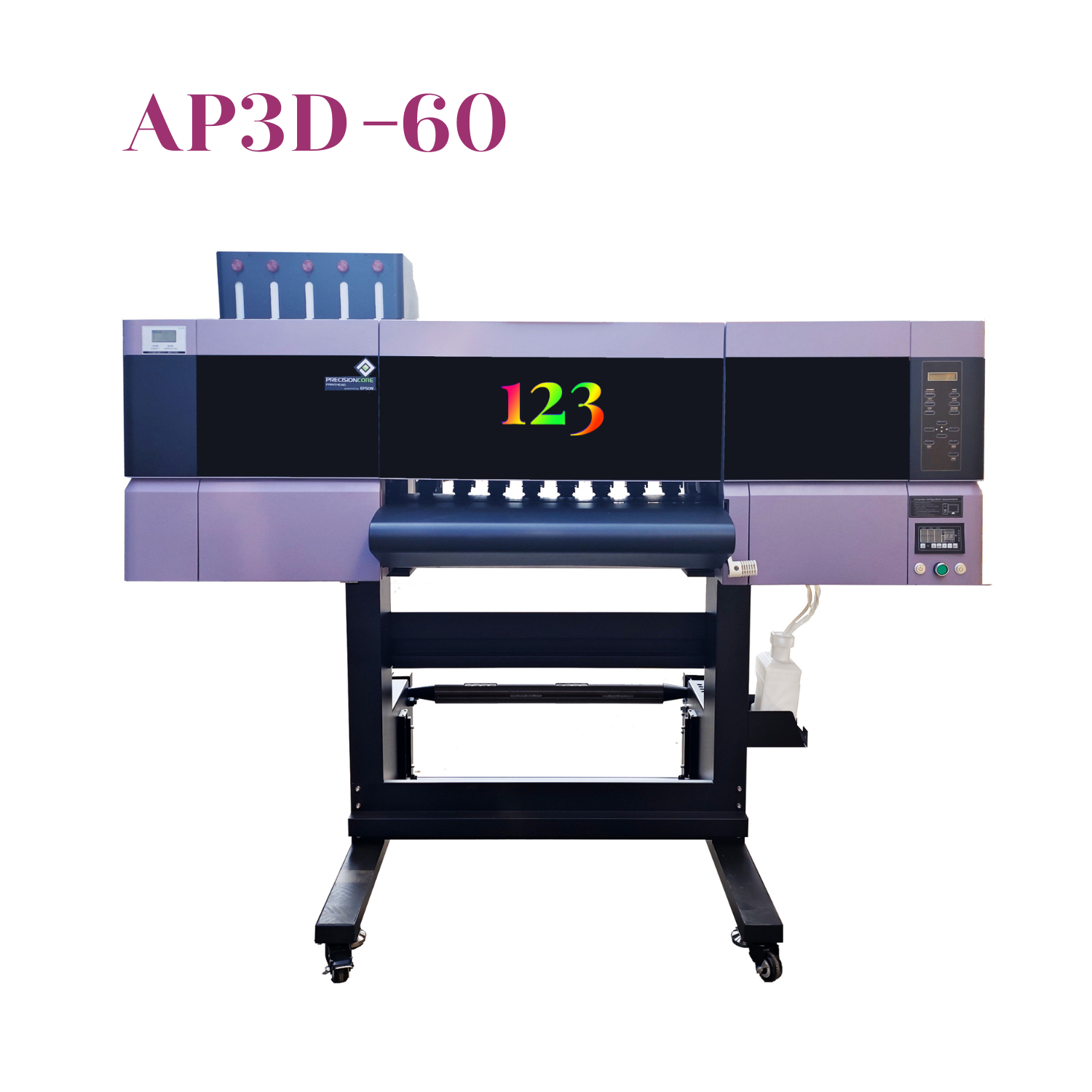

3D Patch Printer
No.AP3D-60
High quality printing + intelligent operation for wider application - Epson genuine print head is used, with high color reproduction.
- Color ink and white ink are printed at the same time, which is clear and gorgeous.
- No plate making, no engraving, no waste discharge, no cutting, convenient and easy to operate.
SPECIFICATION
- Print Head Type: I3200-UV
- Print Head Number: 4 pcs
- Print Head Height: 1.5mm-2.5mm
- Print Head Cleaning: Fully automatic cleaning
- Print Direction: With anti-blocking flash spray and automatic moisture function
- Print Mode: White color varnish
- Print Speed: Production mode--1-2 ㎡/h
- Ink Type: Special soft UV ink
- Ink Color: CMYK+W+V
- Ink Cartridge Capacity: 1500ml per color
- Ink Supply Method: Positive pressure type continuous ink supply
- Printing Width: 600mm
- Weight Capacity: 40kg
- Media Type: Thermal transfer film
- Heating / Drying: UV Led
- Operating System: Win10 / Win 7
- Print Interface: Gigabit Ethernet Port
- RIP Software: Maintop 6.0 UV
- Power Supply: AC-220V, 50Hz/60Hz 10A
- Power: Max--2500W, Min--32W
- Operating environment: Temperature range--18-25°C; Humidity range--35-65%Rh
- Machine Size: 1810mm x 700mm x 1530mm (LxWxH)
- Net Weight: 178kg
- Computer configuration requirements:
- Win7/10 64-bit system (pure version)
- Win10 system must "disable digital signature"
- CPU: 15 6500 or above
- Memory: 16G or above
- C disk: 250G or more (solid state drive recommended)
- Monitor: 17-inch flat screen monitor, true color display card, support for resolutions above 1024X768
